Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

← Back to categories

4,834 items

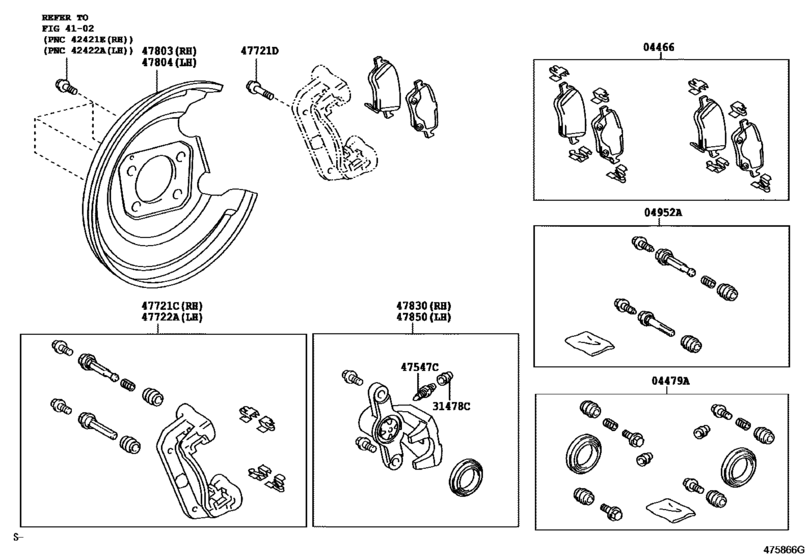

Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150) 14

#	OEM	Part name
4466	04466-02190	Pad Kit, Disc Brake, Rear
4466	04466-02191	Pad Kit, Disc Brake, Rear
4479	04479-02310	Cylinder Kit, Disc Brake, Rear
4952	04952-02220	Pin Kit, Front Disc Brake Cylinder Slide
31478	90069-39001	Cap, Bleeder Plug(For Front Disc Brake)
47547	90069-39000	Plug, Bleeder(For Front Disc Brake)
47721	47821-09010	Mounting, Rear Disc Brake Cylinder, Rh
47721	90105-10404	Bolt (For Rear Axle Carrier Rh)
47722	47822-09010	Mounting, Rear Disc Brake Cylinder, Lh
47803	47881-12080	Cover Sub-Assy, Disc Brake Dust, Rear Rh
47804	47882-12080	Cover Sub-Assy, Disc Brake Dust, Rear Lh
47830	47830-12220	Cylinder Assy, Disc Brake, Rear Rh
47850	47850-12220	Cylinder Assy, Disc Brake, Rear Lh
47850	47850-02280	Cylinder Assy, Disc Brake, Rear Lh

OEM	Part name	Category
04466-02190	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
04466-02191	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
04479-02310	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
04952-02220	Pin Kit, Front Disc Brake Cylinder Slide	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47821-09010	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47822-09010	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47830-12220	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47850-02280	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47850-12220	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47881-12080	Cover Sub-Assy, Disc Brake Dust, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
47882-12080	Cover Sub-Assy, Disc Brake Dust, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
90069-39000	Plug, Bleeder(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
90069-39001	Cap, Bleeder Plug(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)
90105-10404	Bolt (For Rear Axle Carrier Rh)	Rear Disc Brake Caliper & Dust Cover ([02.2007 - ] (0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 268
Collected: 2026-08-02
