ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

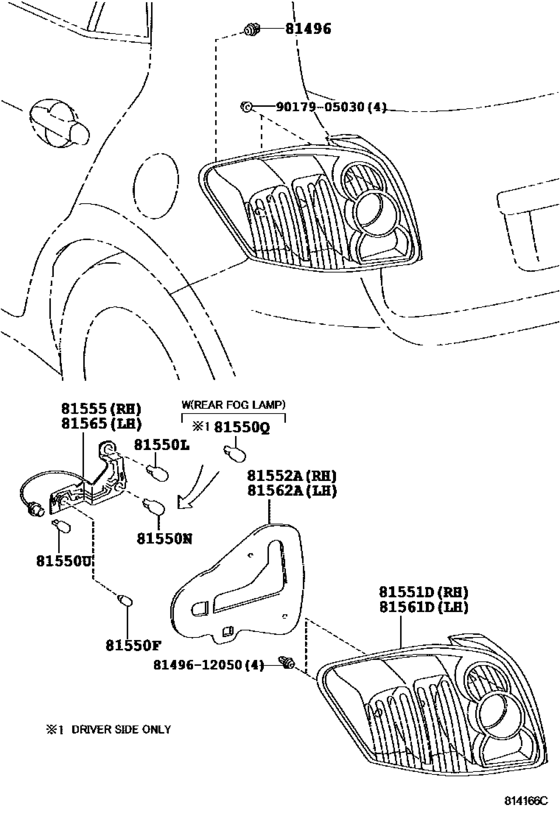

Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA) 46

#	OEM	Part name
81496	81496-28010	Guide, Rear Combination Lamp
81550	90981-WB006	Bulb(For Clearance Lamp)
81550	90981-WB015	Bulb, Tail Lamp
81550	99132-11050	Bulb (For License Plate Lamp)
81550	90981-15021	Bulb (For Front Turn Signal Lamp)
81550	90981-WF005	Bulb (For Front Turn Signal Lamp)
81550	90981-WF006	Bulb(For Rear Combination Lamp)
81550	90981-15020	Bulb (For Front Turn Signal Lamp)
81550	90981-WB007	Bulb (For Center Stop Lamp)
81550	90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)
81550	90981-WB019	Bulb, Back Up Lamp
81550	90981-WC006	Bulb(For Rear Combination Lamp)
81550	90981-WC007	Bulb(For Rear Combination Lamp)
81550	90981-13043	Bulb (12V 21W)
81551	81551-02380	Lens & Body, Rear Combination Lamp, Rh
81551	81551-02400	Lens & Body, Rear Combination Lamp, Rh
81551	81551-02540	Lens & Body, Rear Combination Lamp, Rh
81551	81551-02550	Lens & Body, Rear Combination Lamp, Rh
81552	81552-02370	Gasket, Rear Combination Lamp, Rh
81552	81552-02371	Gasket, Rear Combination Lamp, Rh
81552	81552-02390	Gasket, Rear Combination Lamp, Rh
81552	81552-02391	Gasket, Rear Combination Lamp, Rh
81552	81552-02400	Gasket, Rear Combination Lamp, Rh
81552	81552-02520	Gasket, Rear Combination Lamp, Rh
81552	81552-02530	Gasket, Rear Combination Lamp, Rh
81555	81555-02380	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81555	81555-02400	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81555	81555-02540	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81555	81555-02550	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81561	81561-02380	Lens & Body, Rear Combination Lamp, Lh
81561	81561-02400	Lens & Body, Rear Combination Lamp, Lh
81561	81561-02540	Lens & Body, Rear Combination Lamp, Lh
81561	81561-02550	Lens & Body, Rear Combination Lamp, Lh
81562	81562-02370	Gasket, Rear Combination Lamp, Lh
81562	81562-02371	Gasket, Rear Combination Lamp, Lh
81562	81562-02390	Gasket, Rear Combination Lamp, Lh
81562	81562-02391	Gasket, Rear Combination Lamp, Lh
81562	81562-02400	Gasket, Rear Combination Lamp, Lh
81562	81562-02520	Gasket, Rear Combination Lamp, Lh
81562	81562-02530	Gasket, Rear Combination Lamp, Lh
81565	81565-02380	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81565	81565-02400	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81565	81565-02540	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81565	81565-02550	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
8149612050	81496-12050	Guide, Rear Combination Lamp, No.2
9017905030	90179-05030	NUT

OEM	Part name	Category
81496-12050	Guide, Rear Combination Lamp, No.2	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81496-28010	Guide, Rear Combination Lamp	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81551-02380	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81551-02400	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81551-02540	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81551-02550	Lens & Body, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02370	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02371	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02390	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02391	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02400	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02520	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81552-02530	Gasket, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81555-02380	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81555-02400	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81555-02540	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81555-02550	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81561-02380	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81561-02400	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81561-02540	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81561-02550	Lens & Body, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02370	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02371	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02390	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02391	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02400	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02520	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81562-02530	Gasket, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81565-02380	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81565-02400	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81565-02540	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
81565-02550	Socket & Wire Sub-Assy, Rear Combination Lamp, Lh	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90179-05030	NUT	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-13043	Bulb (12V 21W)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-15020	Bulb (For Front Turn Signal Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-15021	Bulb (For Front Turn Signal Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WB006	Bulb(For Clearance Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WB007	Bulb (For Center Stop Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WB015	Bulb, Tail Lamp	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WB019	Bulb, Back Up Lamp	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WC006	Bulb(For Rear Combination Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WC007	Bulb(For Rear Combination Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WF005	Bulb (For Front Turn Signal Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90981-WF006	Bulb(For Rear Combination Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
99132-11050	Bulb (For License Plate Lamp)	Rear Combination Lamp ([02.2007 - 01.2010] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
