ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories
ADE157 ×

← Back to categories

4,834 items

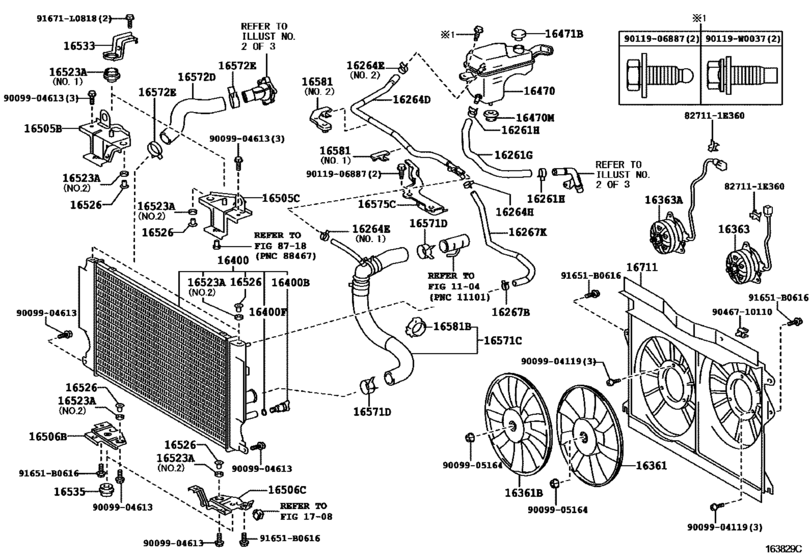

Radiator & Water Outlet ([03.2009 - ] (0903- )1ADFTV,2ADFHV) 69
#OEMPart name
0 82711-1E360 Clamp, Wiring Harness
16261 16261-0R020 Hose, Water By-Pass - WATER BY-PASS, NO.1
16261 16261-0R050 Hose, Water By-Pass, No.1
16261 16261-0R081 Hose, Water By-Pass - WATER BY-PASS, NO.1
16261 90466-W0007 Clip(For Water By-Pass Hose No.1)
16261 90467-21006 Clip(For Ventilation Hose No.2)
16261 96136-42501 Clip(For Ventilation Hose)
16261 96136-52501 Clip(For Water By-Pass Hose No.1)
16264 16264-0D140 Hose, Water By-Pass, No.2
16264 96136-41901 Clip Or Clamp(For Ventilation Hose)
16264 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16264 96136-51901 Clip(For Water By-Pass Hose No.2)
16264 96136-52101 Clip(For Ventilation Hose)
16264 90467-15022 Clip Or Clamp(For Ventilation Hose)
16267 16267-0R040 Hose, Water By-Pass, No.3
16283 16283-0R010 Hose, Water By-Pass, No.6
16283 16283-26011 Hose, Water By-Pass, No.6
16283 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16295 16295-0R010 Hose, Water By-Pass, No.7
16295 16295-26020 Hose, Water By-Pass, No.7
16296 16296-26010 Hose, Water By-Pass, No.8
16296 16296-26020 Hose, Water By-Pass, No.8
16361 16361-0R020 Fan
16361 16361-0R030 Fan, No.2
16363 16363-0R020 Motor, Cooling Fan
16363 16363-0R030 Motor, Cooling Fan, No.2
16400 16400-0R030 Radiator Assy
16400 16417-0Q040 Plug, Radiator Drain Cock
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 16480-26030 Tank Assy, Radiator Reserve
16470 90480-18010 Grommet, Radiator Reserve Tank Hose
16471 16475-28120 Cap Sub-Assy, Reserve Tank
16471 16475-51010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-37010 Cap Sub-Assy, Radiator Reserve Tank
16505 16505-0R020 Support Sub-Assy, Radiator, Upper Rh
16505 16505-0R010 Support Sub-Assy, Radiator, Upper Lh
16506 16506-0R020 Support Sub-Assy, Radiator, Lower Rh
16506 16506-0R070 Support Sub-Assy, Radiator, Lower Rh
16506 16506-0R010 Support Sub-Assy, Radiator, Lower Lh
16523 16523-0R010 Cushion, Radiator Support
16523 16523-0R020 Bush(For Radiator) - RADIATOR SUPPORT
16526 16526-0R010 Collar(For Radiator) - RADIATOR SUPPORT
16533 16533-0R020 Support, Radiator, Upper
16535 16535-0R040 Support, Radiator, Lower
16535 16535-0R050 Support, Radiator, Lower
16571 16571-0R030 Hose, Radiator, No.1
16571 16571-26151 Hose, Radiator, No.1
16571 96136-44801 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-0R030 Hose, Radiator, Outlet - RADIATOR, NO.2
16572 16572-0R040 Hose, Radiator, No.2
16575 16575-22020 Bracket, Water Hose Clamp, No.1
16575 16575-37020 Bracket, Water Hose Clamp, No.1
16581 16581-22110 Clamp, Hose(For Water Hose)
16581 16581-22120 Clamp, Hose(For Water Hose)
16581 16581-26040 Clamp, Hose(For Water Hose)
16581 16581-28070 Clamp, Hose(For Water Hose)
16711 16711-0R020 Shroud, Fan
16711 16711-0R060 Shroud, Fan
16711 16711-0R080 Shroud, Fan
90119 90119-W0037 Bolt, W/washer
91651 91651-B0616 BOLT WWASHER
91671 91671-L0818 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9009904613 90099-04613 New Genuine Part
9009905164 90099-05164 Nut
9011906887 90119-06887 New Genuine Part
9046710110 90467-10110 New Genuine Part
