Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

4,834 items

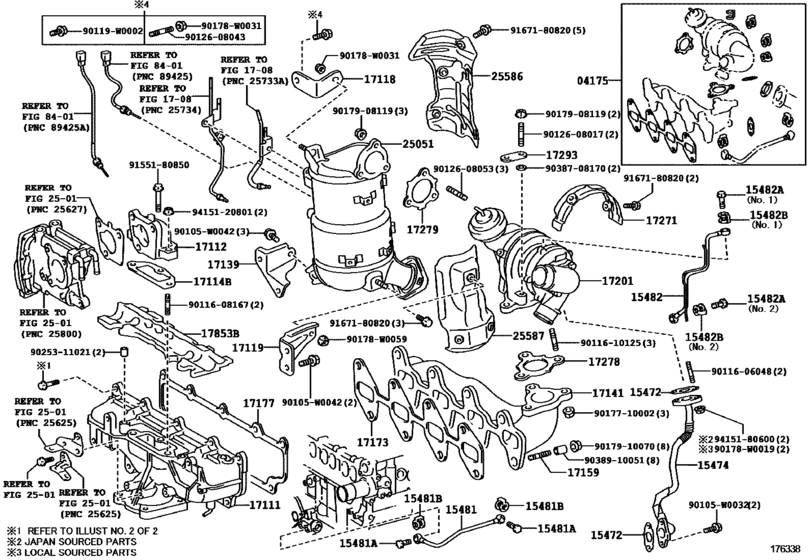

Manifold ([03.2009 - ] (0903- )2ADFHV) 69

#	OEM	Part name
4175	04175-0R100	Gasket Kit, Turbocharger
15472	15472-0R010	Gasket, Turbo Oil Outlet, No.1
15474	15474-26010	Pipe, Turbo Oil Outlet
15474	15474-26030	Pipe, Turbo Oil Outlet
15481	15481-0R010	Pipe, Turbo Oil, No.1
15481	15481-26010	Pipe, Turbo Oil, No.1
15481	90401-12039	Bolt, Union(For Oil Cooler) - UNION, NO.1
15481	90430-12037	Gasket(For Union Bolt No.1)
15482	15482-0R020	Pipe, Turbo Oil, No.2
15482	90401-10061	Bolt, Union(For Turbo Oil Inlet Pipe) - UNION, NO.2
15482	90904-30011	Gasket(For Turbo Oil Inlet Pipe)
17111	17101-0R010	Manifold, Intake
17111	17101-0R011	Manifold, Intake
17111	17101-0R020	Manifold, Intake
17112	17112-26010	Manifold, Intake, No.2
17114	17116-26010	Gasket, Intake Flange
17118	17118-26030	Stay, Manifold
17119	17119-0R020	Stay, Manifold, No.2
17119	17119-26010	Stay, Manifold, No.2
17139	17139-0R020	Stay, Manifold, No.2
17139	17139-26010	Stay, Manifold, No.2
17141	17141-0R010	Manifold, Exhaust
17141	17141-26100	Manifold, Exhaust
17159	90126-10024	Bolt, Stud(For Manifold To Cylinder Head)
17173	17173-0R010	Gasket, Exhaust Manifold To Head
17177	17171-0R010	Gasket, Intake Manifold To Head, No.1
17201	17201-0R021	Turbocharger Sub-Assy
17201	17201-0R022	Turbocharger Sub-Assy
17201	17201-0R050	Turbocharger Sub-Assy
17201	17201-0R051	Turbocharger Sub-Assy
17201	17201-26060	Turbocharger Sub-Assy
17201	17201-26061	Turbocharger Sub-Assy
17271	17271-0R020	Insulator, Turbo, No.1
17278	17278-0R020	Gasket, Turbo To Exhaust Manifold
17279	17279-0R010	Gasket, Turbine Outlet Elbow
17293	17293-26010	Stay, Turbocharger
17853	17853-26030	Insulator, Intake Manifold
25051	25051-0R020	Converter Sub-Assy, Exhaust Manifold
25051	25051-26041	Converter Sub-Assy, Exhaust Manifold
25051	25733-26011	Pipe, Vacuum, No.1
25051	25051-0R041	Converter Sub-Assy, Exhaust Manifold
25051	25051-26040	Converter Sub-Assy, Exhaust Manifold
25586	25586-26010	Insulator, Manifold Converter, No.1
25586	25586-26030	Insulator, Manifold Converter, No.1
25587	25587-26010	Insulator, Manifold Converter, No.2
25587	25587-26020	Insulator, Manifold Converter, No.2
90105	90105-W0032	New Genuine Part
90105	90105-W0042	New Genuine Part
90119	90119-W0002	BOLT WWASHER
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
90178	90178-W0031	Nut (For Transmission Control Cable)
90178	90178-W0059	New Genuine Part
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9011608167	90116-08167	Bolt, Stud(For Intake Manifold To Cylinder Head)
9011610125	90116-10125	Bolt, Stud(For Turbine Housing)
9012608017	90126-08017	Bolt, Stud(For Turbine Housing)
9012608043	90126-08043	Bolt, Stud(For Intake Manifold To Cylinder Head)
9012608053	90126-08053	Bolt, Stud(For Exhaust Manifold, Lh)
9017710002	90177-10002	Nut
9017908119	90179-08119	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9025311021	90253-11021	Pin, Ring
9038708170	90387-08170	New Genuine Part
9038910051	90389-10051	New Genuine Part
9155180850	91551-80850	Bolt, Compressor, No.1
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415120801	94151-20801	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
04175-0R100	Gasket Kit, Turbocharger	Manifold ([03.2009 - ] (0903- )2ADFHV)
15472-0R010	Gasket, Turbo Oil Outlet, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
15474-26010	Pipe, Turbo Oil Outlet	Manifold ([03.2009 - ] (0903- )2ADFHV)
15474-26030	Pipe, Turbo Oil Outlet	Manifold ([03.2009 - ] (0903- )2ADFHV)
15481-0R010	Pipe, Turbo Oil, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
15481-26010	Pipe, Turbo Oil, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
15482-0R020	Pipe, Turbo Oil, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17101-0R010	Manifold, Intake	Manifold ([03.2009 - ] (0903- )2ADFHV)
17101-0R011	Manifold, Intake	Manifold ([03.2009 - ] (0903- )2ADFHV)
17101-0R020	Manifold, Intake	Manifold ([03.2009 - ] (0903- )2ADFHV)
17112-26010	Manifold, Intake, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17116-26010	Gasket, Intake Flange	Manifold ([03.2009 - ] (0903- )2ADFHV)
17118-26030	Stay, Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
17119-0R020	Stay, Manifold, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17119-26010	Stay, Manifold, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17139-0R020	Stay, Manifold, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17139-26010	Stay, Manifold, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
17141-0R010	Manifold, Exhaust	Manifold ([03.2009 - ] (0903- )2ADFHV)
17141-26100	Manifold, Exhaust	Manifold ([03.2009 - ] (0903- )2ADFHV)
17171-0R010	Gasket, Intake Manifold To Head, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
17173-0R010	Gasket, Exhaust Manifold To Head	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-0R021	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-0R022	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-0R050	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-0R051	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-26060	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17201-26061	Turbocharger Sub-Assy	Manifold ([03.2009 - ] (0903- )2ADFHV)
17271-0R020	Insulator, Turbo, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
17278-0R020	Gasket, Turbo To Exhaust Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
17279-0R010	Gasket, Turbine Outlet Elbow	Manifold ([03.2009 - ] (0903- )2ADFHV)
17293-26010	Stay, Turbocharger	Manifold ([03.2009 - ] (0903- )2ADFHV)
17853-26030	Insulator, Intake Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
25051-0R020	Converter Sub-Assy, Exhaust Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
25051-0R041	Converter Sub-Assy, Exhaust Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
25051-26040	Converter Sub-Assy, Exhaust Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
25051-26041	Converter Sub-Assy, Exhaust Manifold	Manifold ([03.2009 - ] (0903- )2ADFHV)
25586-26010	Insulator, Manifold Converter, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
25586-26030	Insulator, Manifold Converter, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
25587-26010	Insulator, Manifold Converter, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
25587-26020	Insulator, Manifold Converter, No.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
25733-26011	Pipe, Vacuum, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([03.2009 - ] (0903- )2ADFHV)
90105-W0032	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
90105-W0042	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90116-08167	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90116-10125	Bolt, Stud(For Turbine Housing)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90119-W0002	BOLT WWASHER	Manifold ([03.2009 - ] (0903- )2ADFHV)
90126-08017	Bolt, Stud(For Turbine Housing)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90126-08043	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90126-08053	Bolt, Stud(For Exhaust Manifold, Lh)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90126-10024	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90177-10002	Nut	Manifold ([03.2009 - ] (0903- )2ADFHV)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90178-W0031	Nut (For Transmission Control Cable)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90178-W0059	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
90179-08119	NUT	Manifold ([03.2009 - ] (0903- )2ADFHV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([03.2009 - ] (0903- )2ADFHV)
90253-11021	Pin, Ring	Manifold ([03.2009 - ] (0903- )2ADFHV)
90387-08170	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
90389-10051	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
90401-10061	Bolt, Union(For Turbo Oil Inlet Pipe) - UNION, NO.2	Manifold ([03.2009 - ] (0903- )2ADFHV)
90401-12039	Bolt, Union(For Oil Cooler) - UNION, NO.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
90430-12037	Gasket(For Union Bolt No.1)	Manifold ([03.2009 - ] (0903- )2ADFHV)
90904-30011	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([03.2009 - ] (0903- )2ADFHV)
91551-80850	Bolt, Compressor, No.1	Manifold ([03.2009 - ] (0903- )2ADFHV)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Manifold ([03.2009 - ] (0903- )2ADFHV)
94151-20801	New Genuine Part	Manifold ([03.2009 - ] (0903- )2ADFHV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Manifold ([03.2009 - ] (0903- )2ADFHV)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 268
Collected: 2026-08-02
