Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories
ADE157 ×

← Back to categories

4,834 items

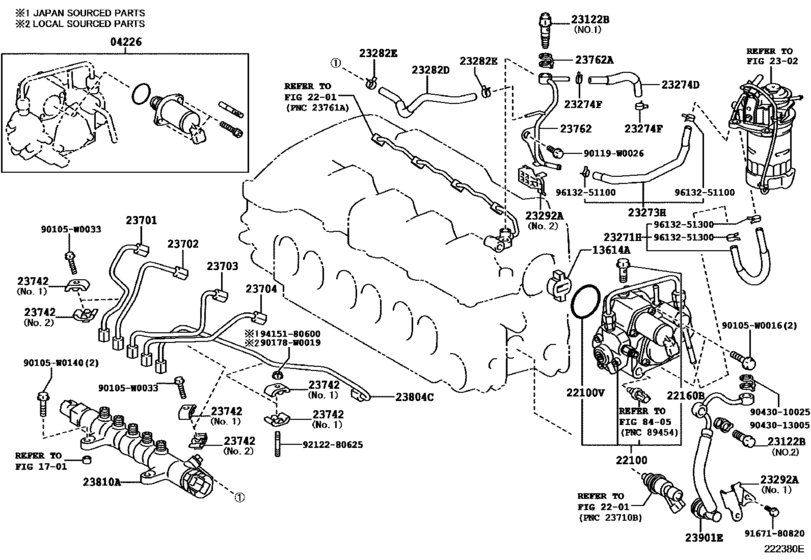

Injection Pump Assembly ([03.2009 - ] (0903- )1ADFTV,2ADFHV) 58
#OEMPart name
4226 04226-0L030 Valve Kit, Suction Control
4226 04226-26020 Valve Kit, Suction Control
4226 04226-26030 Valve Kit, Suction Control
4226 04226-26010 Valve Kit, Suction Control
13614 13614-26010 Coupling, Supply Pump Drive, No.1
22100 22100-0R020 Pump Assy, Injection Or Supply
22100 22100-0R051 Pump Assy, Injection Or Supply
22100 22100-0R021 Pump Assy, Injection Or Supply
22100 22100-0R040 Pump Assy, Injection Or Supply
22100 22193-0R020 Ring, O(For Injection Pump)
22160 22569-0R020 Screw
23122 23769-26020 Valve, Check
23122 23769-26030 Valve, Fuel Check
23271 23271-0R030 Hose, Fuel, No.1
23271 23271-26060 Hose, Fuel, No.1
23273 23273-0R010 Hose, Fuel, No.2
23273 23273-26040 Hose, Fuel, No.2
23274 23274-26020 Hose, Fuel, No.3
23274 23274-26080 Hose, Fuel, No.3
23274 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
23282 23282-26040 Hose, Fuel, No.4
23282 23282-26070 Hose, Fuel, No.4
23282 90467-11076 Clamp Or Clip(For Air Hose, No.5)
23292 23292-0R010 Protector, Fuel Hose
23292 23292-26030 Protector, Fuel Hose
23701 23701-0R020 Pipe Sub-Assy, Injection, No.1
23701 23701-0R030 Pipe Sub-Assy, Injection, No.1
23702 23702-0R020 Pipe Sub-Assy, Injection, No.2
23702 23702-0R030 Pipe Sub-Assy, Injection, No.2
23703 23703-0R020 Pipe Sub-Assy, Injection, No.3
23703 23703-0R030 Pipe Sub-Assy, Injection, No.3
23704 23704-0R020 Pipe Sub-Assy, Injection, No.4
23704 23704-26060 Pipe Sub-Assy, Injection, No.4
23704 23704-0R030 Pipe Sub-Assy, Injection, No.4
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-58020 Clamp, Injection Pipe, No.2
23762 23762-0R021 Pipe, Nozzle Leakage, No.2
23762 23762-26021 Pipe, Nozzle Leakage, No.2
23762 90904-30012 Gasket, Nozzle Leakage Pipe No.2
23804 23804-0R010 Pipe Sub-Assy, Fuel Inlet
23804 23804-0R020 Pipe Sub-Assy, Fuel Inlet
23810 23810-0R020 Rail Assy, Common
23810 23810-0R040 Rail Assy, Common
23810 23810-0R041 Rail Assy, Common
23901 23901-26030 Tube Sub-Assy, Fuel
23901 23901-26040 Tube Sub-Assy, Fuel
90105 90105-W0016 New Genuine Part
90105 90105-W0033 New Genuine Part
90105 90105-W0140 New Genuine Part
90119 90119-W0026 New Genuine Part
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
9043010025 90430-10025 Gasket(For Turbo Oil Inlet Pipe) - NOZZLE LEAKAGE PIPE NO.2
9043013005 90430-13005 GASKET
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
9212280625 92122-80625 New Genuine Part
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
