ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories
ADE157 ×

← Back to categories

4,834 items

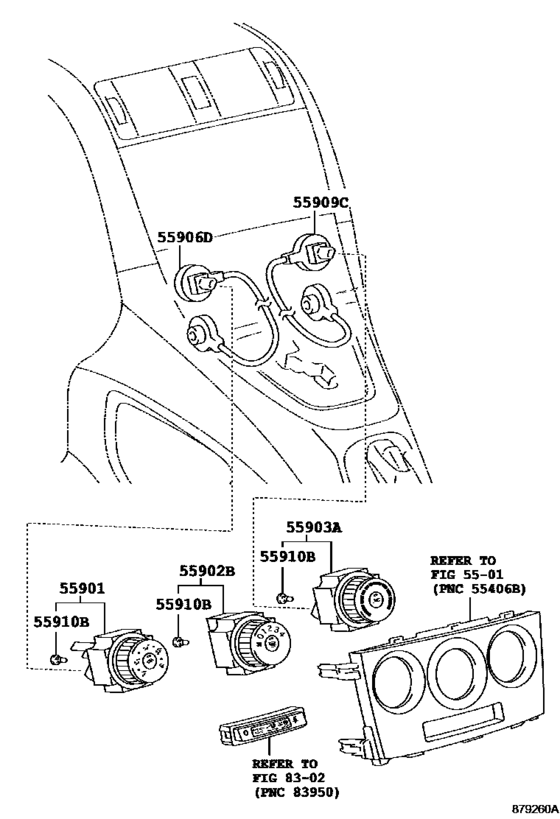

Heating & Air Conditioning - Control & Air Duct ([02.2007 - ] MANUAL CONTROL (0702- )) 12
#OEMPart name
55901 55901-12140 Base Sub-Assy, Heater Control
55902 55902-12060 Control Sub-Assy, Heater
55902 55902-12070 Control Sub-Assy, Heater
55903 55903-12010 Control Sub-Assy, Heater, No.3
55903 55903-12020 Control Sub-Assy, Heater, No.3
55903 55903-12030 Control Sub-Assy, Heater, No.3
55903 55903-12040 Control Sub-Assy, Heater, No.3
55906 55906-0K010 Cable Sub-Assy, Heater Control - HEATER CONTROL, NO.2
55906 55906-26060 Cable Sub-Assy, Heater Control
55909 55909-0K010 Cable Sub-Assy, Airmix Damper Control
55909 55909-26080 Cable Sub-Assy, Airmix Damper Control
55910 90010-01122 Bulb, Heater Control
