ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

← Back to categories

4,834 items

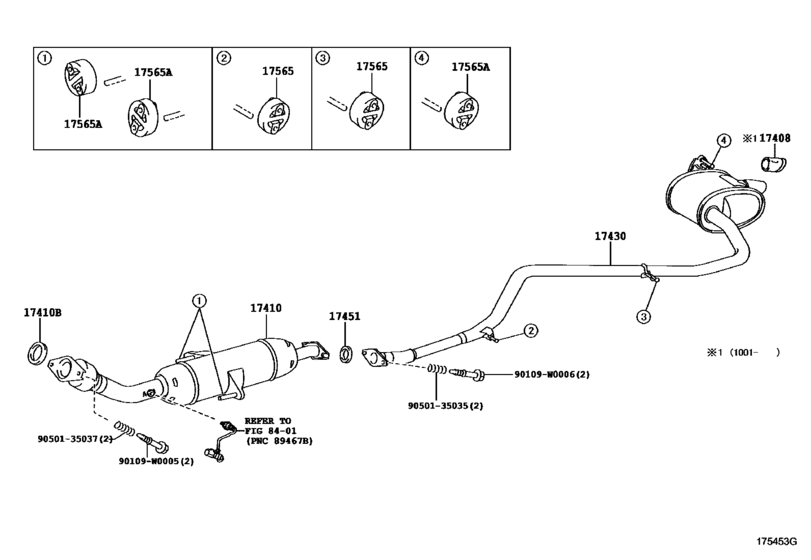

Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV) 17

#	OEM	Part name
17408	17408-31060	Baffle Sub Assy, Exhaust Tail Pipe
17410	17410-0R070	Pipe Assy, Exhaust, Front
17410	17410-0R130	Pipe Assy, Exhaust, Front
17410	17451-0R010	Gasket, Exhaust Pipe
17430	17430-0R040	Pipe Assy, Exhaust, Tail
17430	17430-0R110	Pipe Assy, Exhaust, Tail
17451	17451-0D110	Gasket, Exhaust Pipe
17451	17451-0D112	Gasket, Exhaust Pipe
17451	17451-0D111	Gasket, Exhaust Pipe
17565	17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5
17565	17565-0J030	Support, Exhaust Pipe, No.3
17565	17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4
17565	17565-22040	Support, Exhaust Pipe, No.1
90109	90109-W0005	BOLT
90109	90109-W0006	BOLT
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe

OEM	Part name	Category
17408-31060	Baffle Sub Assy, Exhaust Tail Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17410-0R070	Pipe Assy, Exhaust, Front	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17410-0R130	Pipe Assy, Exhaust, Front	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17430-0R040	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17430-0R110	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17451-0D110	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17451-0D111	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17451-0D112	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17451-0R010	Gasket, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17565-0D100	Support, Exhaust Pipe, No.2 - EXHAUST PIPE, NO.5	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17565-0J030	Support, Exhaust Pipe, No.3	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17565-0J031	Support, Exhaust Pipe, No.3 - EXHAUST PIPE, NO.4	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
90109-W0005	BOLT	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
90109-W0006	BOLT	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([02.2007 - ] (0702- )2ADFHV)
