Search › Model › ADE157
ADE157

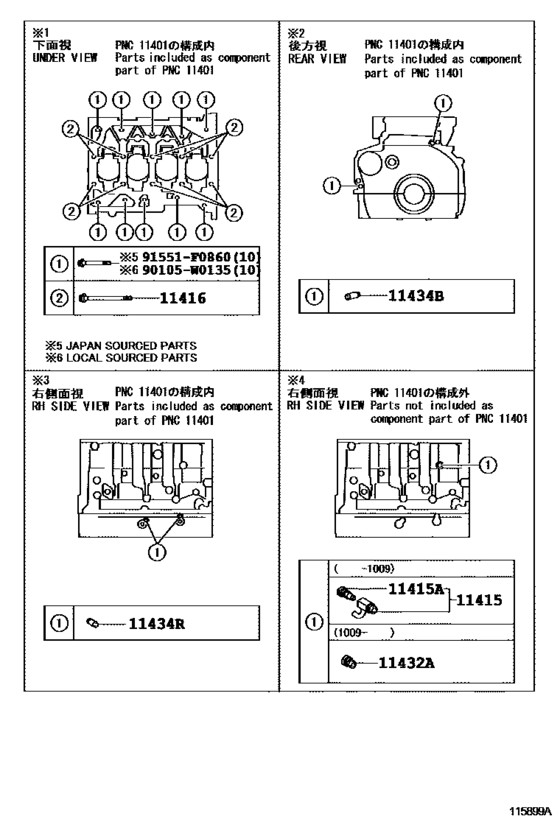

Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) 9
| # | OEM | Part name |
|---|---|---|
| 11415 | 90910-09075 | Cock Sub-Assy, Water Drain(For Cylinder Block) |
| 11415 | 90910-09129 | Cock Sub-Assy, Water Drain(For Cylinder Block) |
| 11415 | 90910-09087 | Plug, Water Drain Cock(For Cylinder Block) |
| 11416 | 90910-02157 | Bolt(For Crankshaft Bearing Cap Set) |
| 11432 | 90345-52001 | Cock Sub-Assy, Water Drain(For Cylinder Block) |
| 11434 | 90250-10113 | Pin, Straight(For Timing Gear Cover Set) |
| 11434 | 90250-08120 | Pin, Straight, No.1 |
| 90105 | 90105-W0135 | New Genuine Part |
| 91551 | 91551-F0860 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 90105-W0135 | New Genuine Part | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90250-08120 | Pin, Straight, No.1 | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90250-10113 | Pin, Straight(For Timing Gear Cover Set) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90345-52001 | Cock Sub-Assy, Water Drain(For Cylinder Block) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90910-02157 | Bolt(For Crankshaft Bearing Cap Set) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90910-09075 | Cock Sub-Assy, Water Drain(For Cylinder Block) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90910-09087 | Plug, Water Drain Cock(For Cylinder Block) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 90910-09129 | Cock Sub-Assy, Water Drain(For Cylinder Block) | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
| 91551-F0860 | New Genuine Part | Cylinder Block ([03.2009 - ] (0903- )1ADFTV,2ADFHV) |
