Search › Model › ADE157

ADE157

Toyota AURIS-COROLLA · 2007 · 4,834 parts · 268 categories

← Back to categories

4,834 items

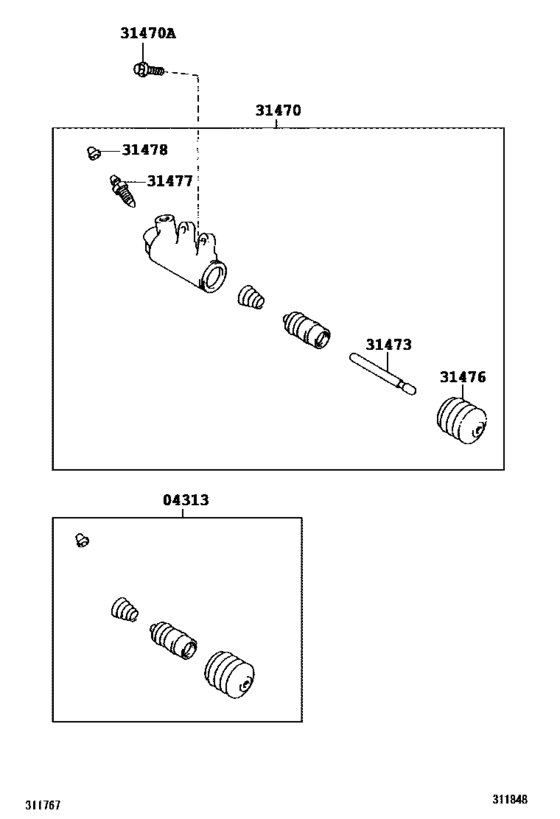

Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#) 7

#	OEM	Part name
4313	04313-53010	Cylinder Kit, Clutch Release
31470	31470-12190	Cylinder Assy, Clutch Release
31470	91611-60822	Bolt
31473	31473-20031	Rod, Clutch Release Cylinder Push, No.1
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-20010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap

OEM	Part name	Category
04313-53010	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
31470-12190	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
31473-20031	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
47547-20010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)
91611-60822	Bolt	Clutch Release Cylinder ([02.2007 - ] (0702- )ADE15#)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 268
Collected: 2026-08-02
