ADE150

Toyota AURIS-COROLLA · 2006 · 3,619 parts · 203 categories

3,619 items

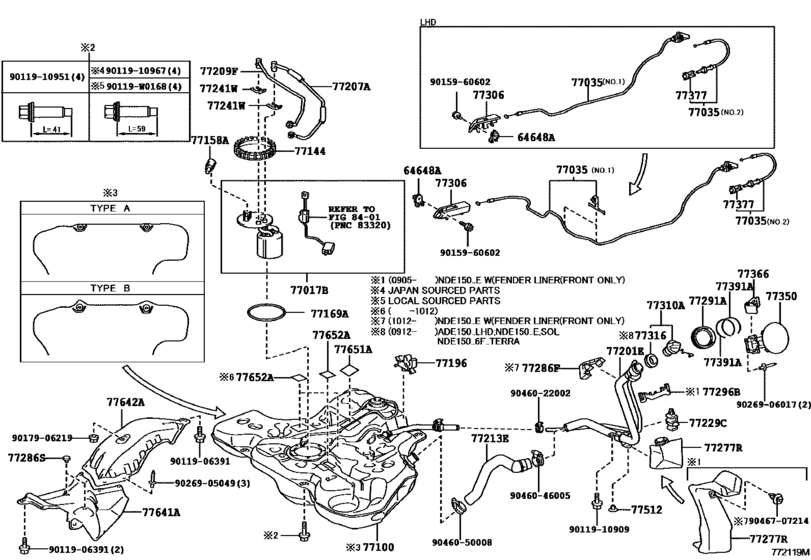

Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150) 48

#	OEM	Part name
64648	64648-12020	Grommet, Luggage Door Lock Opener
77017	77010-02020	Tube Sub-Assy, Fuel Tank Vent
77017	77010-02081	Tube Sub-Assy, Fuel Tank Vent
77035	77035-12430	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-12490	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-02260	Tank Assy, Fuel
77144	77144-0H010	Retainer, Fuel Pump Gauge
77158	77158-0D020	Support, Tank Suction Tube
77169	77169-0D030	Gasket, Fuel Suction Tube Set
77196	77196-02050	Clamp, Evaporation Vent Tube, No.1
77201	77201-12650	Pipe Sub-Assy, Fuel Tank Filler
77207	77204-02050	Tube Sub-Assy, Fuel Return
77209	77209-02090	Tube Sub-Assy, Fuel Tank Main
77213	77213-12270	Hose, Fuel Tank To Filler Pipe
77229	77229-12070	Clamp, Breather Tube
77241	77241-32060	Clip, Tube Joint
77277	77277-12180	Protector, Fuel Tank Filler Pipe
77286	77286-12110	Cushion, Fuel Tank Protector
77291	77291-02080	Shield, Fuel Tank Filler Pipe
77306	77306-52030	Lever Sub-Assy, Fuel Lid Lock Open
77310	77300-20020	Cap Assy, Fuel Tank
77310	77300-52030	Cap Assy, Fuel Tank
77350	77350-12480	Lid Assy, Fuel Filler Opening
77366	77366-52010	Spring, Fuel Filler Opening Lid Hinge
77377	77377-12060	Retainer, Fuel Filler Opening Lid Lock
77391	77391-12020	Ring, Fuel Inlet Box
77512	77512-35140	Bracket, Fuel Tank
77641	77641-02060	Protector, Fuel Tank, No.1
77642	77642-02010	Protector, Fuel Tank, No.2
77642	77606-12130	Protector Sub-Assy, Fuel Tank, No.1
77642	77642-02011	Protector, Fuel Tank, No.2
77651	77651-12070	Cushion, Fuel Tank, No.1
77652	77652-45020	Cushion, Fuel Tank, No.2
90119	90119-W0168	New Genuine Part
9011906391	90119-06391	Bolt, W/Washer
9011910909	90119-10909	Bolt
9011910951	90119-10951	BOLT WWASHER
9011910967	90119-10967	New Genuine Part
9015960602	90159-60602	SCREW
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9026905049	90269-05049	RIVET
9026906017	90269-06017	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046050008	90460-50008	Clamp (For Fuel Filler Pipe)
9046707214	90467-07214	Clip, Front Fender Liner

OEM	Part name	Category
64648-12020	Grommet, Luggage Door Lock Opener	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77001-02260	Tank Assy, Fuel	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77010-02020	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77010-02081	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77035-12430	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77035-12490	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77144-0H010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77158-0D020	Support, Tank Suction Tube	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77169-0D030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77196-02050	Clamp, Evaporation Vent Tube, No.1	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77201-12650	Pipe Sub-Assy, Fuel Tank Filler	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77204-02050	Tube Sub-Assy, Fuel Return	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77209-02090	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77213-12270	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77229-12070	Clamp, Breather Tube	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77241-32060	Clip, Tube Joint	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77277-12180	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77286-12110	Cushion, Fuel Tank Protector	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77291-02080	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77300-20020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77300-52030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77306-52030	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77350-12480	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77366-52010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77377-12060	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77606-12130	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77641-02060	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77642-02010	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77642-02011	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
77652-45020	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90119-06391	Bolt, W/Washer	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90119-10909	Bolt	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90119-10951	BOLT WWASHER	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90119-10967	New Genuine Part	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90119-W0168	New Genuine Part	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90159-60602	SCREW	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90179-06219	Nut	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90182-A0005	Nut	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90269-05049	RIVET	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90269-06017	RIVET	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90460-22001	CLAMP	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90460-22002	CLAMP	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90460-50008	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
90467-07214	Clip, Front Fender Liner	Fuel Tank & Tube ([02.2007 - ] FUEL TANK (0702- )ADE150,NDE150)
