Search › Model › ADE150

ADE150

Toyota AURIS-COROLLA · 2006 · 3,619 parts · 203 categories

← Back to categories

3,619 items

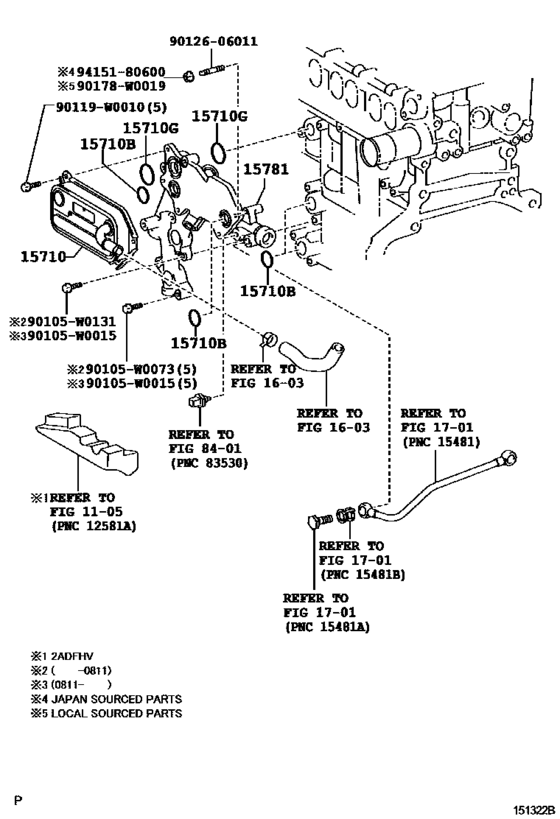

Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV) 12

#	OEM	Part name
15710	15710-0R010	Cooler Assy, Oil
15710	15710-0R011	Cooler Assy, Oil
15710	90301-24018	Ring, O(For Oil Filter Bracket) - O(FOR OIL COOLER)
15710	90301-29013	Ring, O, No.2
15781	15781-26030	Bracket, Oil Cooler, No.1
90105	90105-W0015	Bolt(For Head To Camshaft Bearing Cap)
90105	90105-W0073	Bolt(For Head To Camshaft Bearing Cap)
90105	90105-W0131	New Genuine Part
90119	90119-W0010	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9012606011	90126-06011	New Genuine Part
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
15710-0R010	Cooler Assy, Oil	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
15710-0R011	Cooler Assy, Oil	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
15781-26030	Bracket, Oil Cooler, No.1	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90105-W0015	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90105-W0073	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90105-W0131	New Genuine Part	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90119-W0010	New Genuine Part	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90126-06011	New Genuine Part	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90301-24018	Ring, O(For Oil Filter Bracket) - O(FOR OIL COOLER)	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
90301-29013	Ring, O, No.2	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Engine Oil Cooler ([02.2007 - ] (0702- )1ADFTV,2ADFHV)

Source: Public OEM parts-catalog data
Variants: 2 / 20
Category: 203
Collected: 2026-08-02
