ADE150

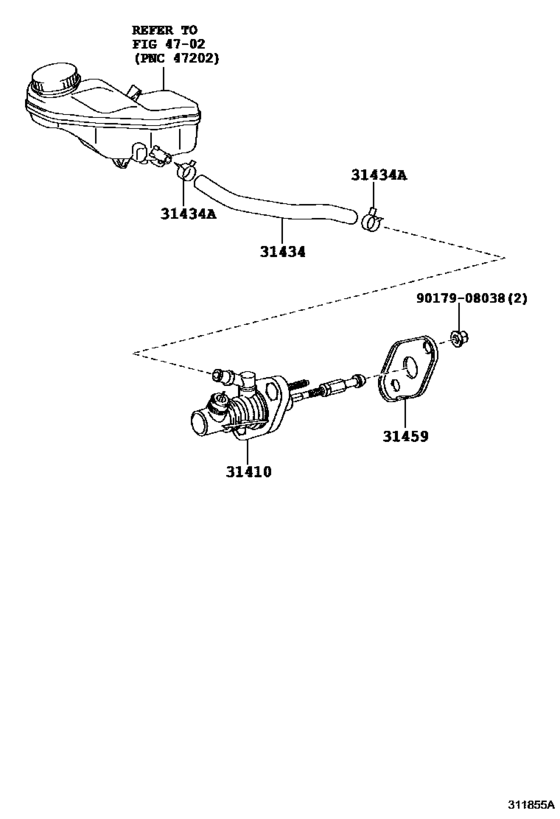

Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) 6
| # | OEM | Part name |
|---|---|---|
| 31410 | 31420-02061 | Cylinder Assy, Clutch Master |
| 31410 | 31420-02062 | Cylinder Assy, Clutch Master |
| 31434 | 31434-02040 | Tube, Clutch Reservoir |
| 31434 | 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) |
| 31459 | 31459-42040 | Bracket, Clutch Master Cylinder |
| 9017908038 | 90179-08038 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 31420-02061 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
| 31420-02062 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
| 31434-02040 | Tube, Clutch Reservoir | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
| 31459-42040 | Bracket, Clutch Master Cylinder | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
| 90179-08038 | Nut | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
| 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) | Clutch Master Cylinder ([02.2007 - ] (0702- )ADE15#..RHD) |
