Search › Model › ACV51
ACV51

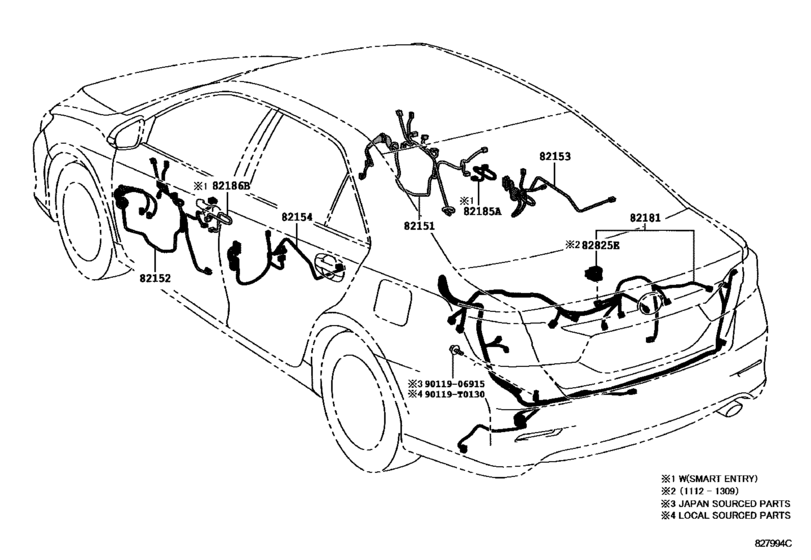

Wiring & Clamp ([12.2011 - ] DOOR (1112- )) 11
| # | OEM | Part name |
|---|---|---|
| 82151 | 82151-06F80 | Wire, Front Door, Rh |
| 82151 | 82151-06G70 | Wire, Front Door, Rh |
| 82152 | 82152-06C00 | Wire, Front Door, Lh |
| 82153 | 82153-06490 | Wire, Rear Door, No.1 |
| 82154 | 82154-06490 | Wire, Rear Door, No.2 |
| 82181 | 82181-06C20 | Wire, Luggage Room, No.1 |
| 82181 | 82181-06C10 | Wire, Luggage Room, No.1 |
| 82185 | 82185-06100 | Wire, Smart Door, Front Rh |
| 82825 | 82824-30220 | Connector, Wiring Harness |
| 90119 | 90119-T0130 | New Genuine Part |
| 90119 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82151-06F80 | Wire, Front Door, Rh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82151-06G70 | Wire, Front Door, Rh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82152-06C00 | Wire, Front Door, Lh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82153-06490 | Wire, Rear Door, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82154-06490 | Wire, Rear Door, No.2 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82181-06C10 | Wire, Luggage Room, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82181-06C20 | Wire, Luggage Room, No.1 | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82185-06100 | Wire, Smart Door, Front Rh | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 82824-30220 | Connector, Wiring Harness | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
| 90119-T0130 | New Genuine Part | Wiring & Clamp ([12.2011 - ] DOOR (1112- )) |
