ACV51

Toyota CAMRY-VISTA-AURION · 2011 · 3,158 parts · 186 categories

3,158 items

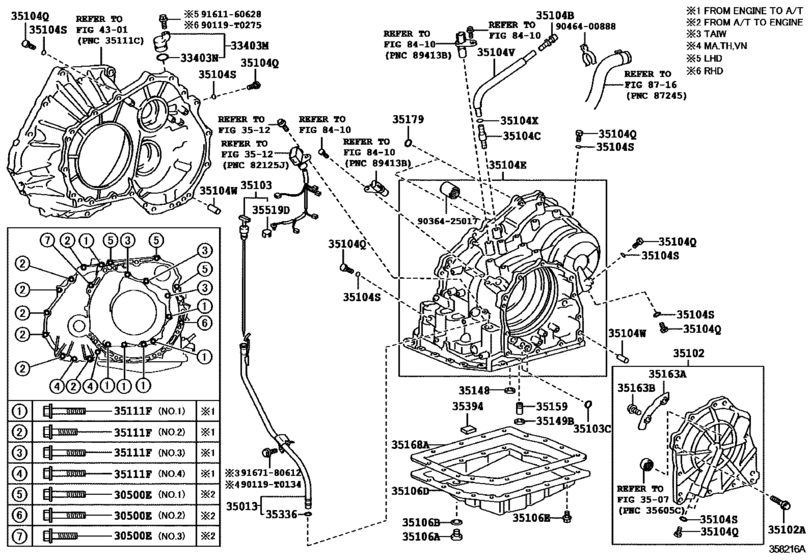

Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51) 59

#	OEM	Part name
30500	90105-T0006	Bolt(For Transaxle & Engine Setting)
30500	90105-T0311	Bolt(For Transaxle & Engine Setting)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	90119-T0214	Bolt(For Transaxle Case & Engine Setting)
30500	91512-61050	Bolt(For Alternator)
30500	91512-61065	Bolt(For Transaxle & Engine Setting)
33403	33403-0D010	Cover Sub-Assy, Speedometer Driven Hole (Atm)
33403	33403-20230	Cover Sub-Assy, Speedometer Driven Hole
33403	90301-T0044	Ring, O (For Atm Speedometer Driven Hole Cover)
33403	96711-24018	Ring, O
35013	35013-06140	Tube Sub-Assy, Transmission Oil Filler
35102	35102-33020	Cover Sub-Assy, Transaxle Rear
35102	35102-28020	Cover Sub-Assy, Transaxle Rear
35102	35102-42H00	Cover Sub-Assy, Transaxle Rear
35102	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35103	35103-06070	Gage Sub-Assy, Transmission Oil Level
35103	90301-10018	Ring, O(For Oil Cooler Tube Union)
35103	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35104	90930-03157	Plug, Breather, No.2 (Atm)
35104	35104-33092	Case Sub-Assy, Automatic Transaxle
35104	35104-28093	Case Sub-Assy, Automatic Transaxle
35104	35104-33081	Case Sub-Assy, Automatic Transaxle
35104	82123-28431	Wire, Engine, No.3
35104	82715-44520	Bracket,wiring Harness Clamp
35104	90119-08868	BOLT WWASHER
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	35121-21020	Hose (For Breather Plug)
35104	90250-10036	Pin, Straight (For Transaxle Case)
35104	90250-10232	Pin, Straight(For Engine Rear Oil Seal)
35104	90301-06005	Ring, O (For Breather Plug)
35104	90301-06021	Ring, O (For Breather Plug)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-33030	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08353	Bolt(For Head To Camshaft Bearing Cap)
35148	35145-21010	Gasket, Transaxle Case
35149	35149-21010	Gasket, Transaxle Case 2Nd Brake
35159	35159-21010	Gasket, Brake Drum
35163	35163-28010	Plate, Transaxle Rear Cover
35163	90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)
35168	35168-21020	Gasket, Automatic Transaxle Oil Pan
35179	90301-06008	Ring, O (For Transfer Oil Strainer)
35179	90301-06024	Ring, O
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35519	35519-41010	Label, Automatic Transmission Information
90119	90119-T0134	BOLT WWASHER
90119	90119-T0275	New Genuine Part
9036425017	90364-25017	New Genuine Part
9046400888	90464-00888	New Genuine Part
9161160628	91611-60628	Bolt, Hexagon
9167180612	91671-80612	Bolt

OEM	Part name	Category
33403-0D010	Cover Sub-Assy, Speedometer Driven Hole (Atm)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
33403-20230	Cover Sub-Assy, Speedometer Driven Hole	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35013-06140	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35102-28020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35102-33020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35102-42H00	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35103-06070	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35104-28093	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35104-33081	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35104-33092	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35106-33030	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35121-21020	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35145-21010	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35149-21010	Gasket, Transaxle Case 2Nd Brake	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35159-21010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35163-28010	Plate, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35168-21020	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
35519-41010	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
82123-28431	Wire, Engine, No.3	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
82715-44520	Bracket,wiring Harness Clamp	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90080-10187	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-06320	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-08353	Bolt(For Head To Camshaft Bearing Cap)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-T0006	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90105-T0311	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-08868	BOLT WWASHER	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-T0134	BOLT WWASHER	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-T0214	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90119-T0275	New Genuine Part	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90148-60055	Screw, Hex Lobular(For Transaxle Rear Cover Plate)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90250-10036	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90250-10232	Pin, Straight(For Engine Rear Oil Seal)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-06008	Ring, O (For Transfer Oil Strainer)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-06021	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-06024	Ring, O	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-10018	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-T0044	Ring, O (For Atm Speedometer Driven Hole Cover)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90364-25017	New Genuine Part	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90464-00888	New Genuine Part	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90930-03157	Plug, Breather, No.2 (Atm)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
91512-61050	Bolt(For Alternator)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
91512-61065	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
91611-60628	Bolt, Hexagon	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
91671-80612	Bolt	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
96711-24018	Ring, O	Transmission Case & Oil Pan (Atm) ([12.2011 - ] U241E (1112- )ACV51)
