| 35501-21010 |
Rod Sub-Assy, Parking Lock |

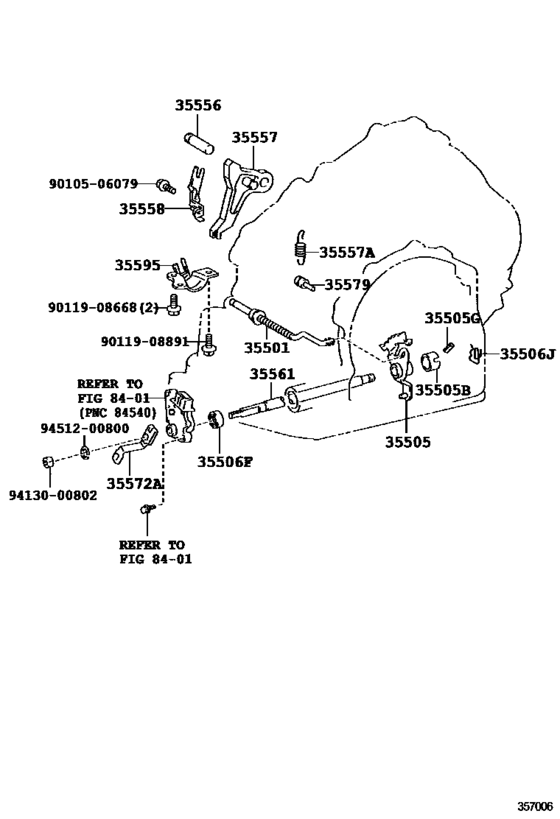

Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35505-21010 |
Lever Sub-Assy, Manual Valve |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35556-32030 |
Shaft, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35558-32010 |
Clamp, Pawl Shaft |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35561-21010 |
Shaft, Manual Valve Lever |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35572-33040 |
Lever, Transmission Control Shaft |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35590-32010 |
Pawl, Parking Lock |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35594-21010 |
Pin, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 35595-21010 |
Bracket, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90105-06079 |
Bolt |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90119-08668 |
New Genuine Part |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90119-08891 |
BOLT |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90170-A0001 |
New Genuine Part |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90254-04011 |
Pin, Slotted Spring (For Transfer Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90311-12002 |
Oil Seal, Type T |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90506-18077 |
Spring, Torsion (For Parking Lock Pawl) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90524-09001 |
Spring, Retainer (For Manual Valve Lever Shaft) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 90560-20006 |
Spacer (For Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 94130-00802 |
Nut, No.1 (For Center Support Bearing) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Throttle Link & Valve Lever (Atm) ([12.2011 - ] U241E (1112- )ACV51) |
