Search › Model › ACV51
ACV51

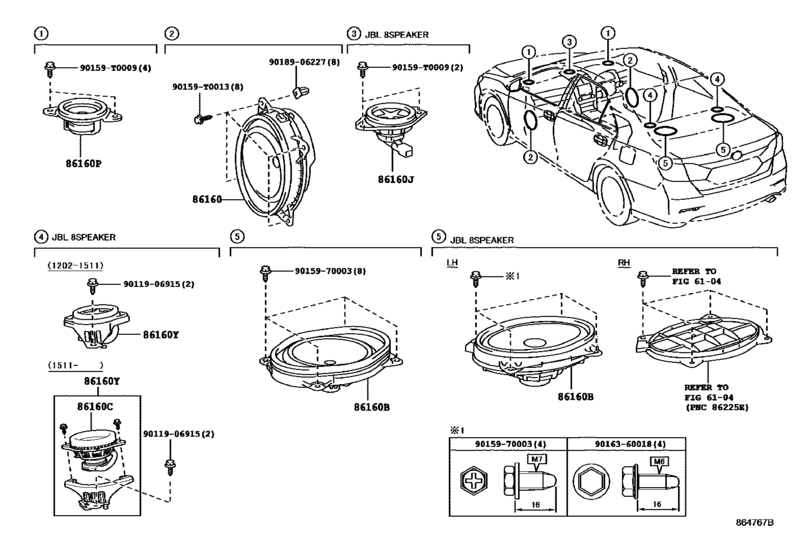

Speaker ([03.2012 - ] (1203- )RHD) 9
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-06730 | Speaker Assy, Front No.1 |
| 86160 | 86160-06760 | Speaker Assy, Rear |
| 86160 | 86160-06720 | Speaker Assy, Front No.2 |
| 90159 | 90159-T0009 | SCREWWWASHER TAP |
| 90159 | 90159-T0013 | New Genuine Part |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9015970003 | 90159-70003 | Bolt, W/washer |
| 9016360018 | 90163-60018 | New Genuine Part |
| 9018906227 | 90189-06227 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86160-06720 | Speaker Assy, Front No.2 | Speaker ([03.2012 - ] (1203- )RHD) |
| 86160-06730 | Speaker Assy, Front No.1 | Speaker ([03.2012 - ] (1203- )RHD) |
| 86160-06760 | Speaker Assy, Rear | Speaker ([03.2012 - ] (1203- )RHD) |
| 90119-06915 | BOLT W-WASHER | Speaker ([03.2012 - ] (1203- )RHD) |
| 90159-70003 | Bolt, W/washer | Speaker ([03.2012 - ] (1203- )RHD) |
| 90159-T0009 | SCREWWWASHER TAP | Speaker ([03.2012 - ] (1203- )RHD) |
| 90159-T0013 | New Genuine Part | Speaker ([03.2012 - ] (1203- )RHD) |
| 90163-60018 | New Genuine Part | Speaker ([03.2012 - ] (1203- )RHD) |
| 90189-06227 | GROMMET SCREW | Speaker ([03.2012 - ] (1203- )RHD) |
