Search › Model › ACV51

ACV51

Toyota CAMRY-VISTA-AURION · 2011 · 3,158 parts · 186 categories

3,158 items

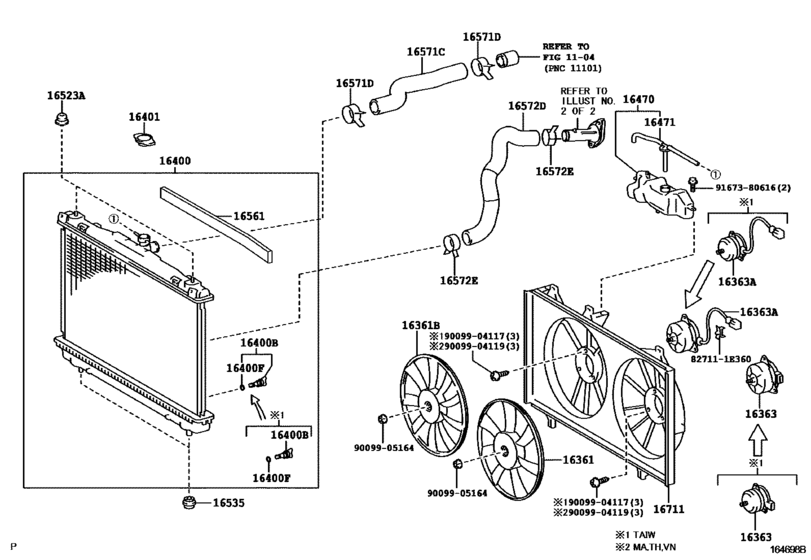

Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE) 21

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16361	16361-0V230	Fan
16361	16361-0V240	Fan, No.2
16363	16363-0H130	Motor, Cooling Fan
16363	16363-0V280	Motor, Cooling Fan, No.2
16400	16400-0V210	Radiator Assy
16401	16401-31520	Radiator Cap Sub-Assy (108kPa)
16401	16401-36020	Cap Sub-Assy, Radiator
16470	16470-0V050	Tank Assy, Radiator Reserve
16471	16405-0V020	Cap Sub-Assy, Reserve Tank
16523	16523-20020	Cushion, Radiator Support
16535	16535-0H060	Support, Radiator, Lower
16561	16561-28020	Seal, Radiator To Support, No.1
16571	16571-0H210	Hose, Radiator, No.1
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0H180	Hose, Radiator, No.2
16711	16711-0V160	Shroud, Fan
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
16361-0V230	Fan	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16361-0V240	Fan, No.2	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16363-0H130	Motor, Cooling Fan	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16363-0V280	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16400-0V210	Radiator Assy	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16405-0V020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16470-0V050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16523-20020	Cushion, Radiator Support	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16535-0H060	Support, Radiator, Lower	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16561-28020	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16571-0H210	Hose, Radiator, No.1	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16572-0H180	Hose, Radiator, No.2	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
16711-0V160	Shroud, Fan	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
90099-05164	Nut	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)
91673-80616	Bolt, W/washer	Radiator & Water Outlet ([12.2011 - ] RADIATOR SIDE (1112- )1AZFE)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 186
Collected: 2026-08-02
