ACV51

Toyota CAMRY-VISTA-AURION · 2011 · 3,158 parts · 186 categories

3,158 items

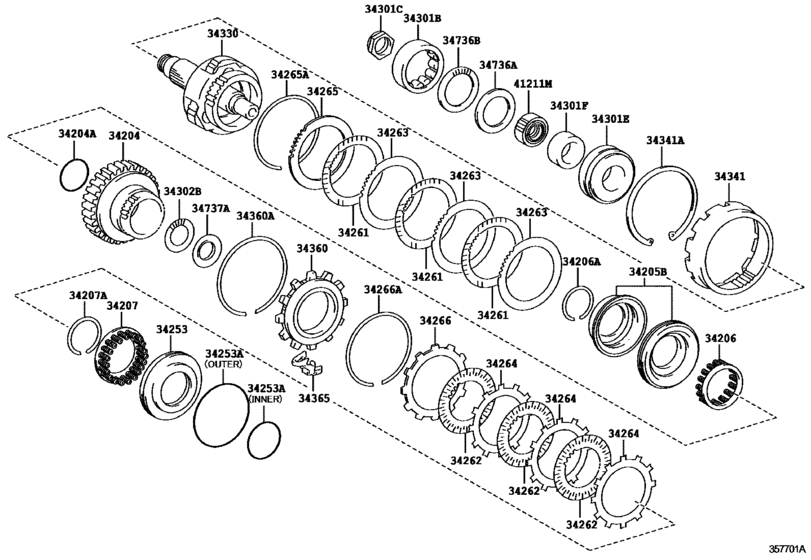

Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51) 47

#	OEM	Part name
34204	34204-32010	Drum Sub-Assy, Underdrive Clutch
34204	34204-28020	Drum Sub-Assy, Underdrive Clutch
34204	90301-44004	Ring, O (For Underdrive Clutch Drum)
34205	34205-32010	Piston Set, Underdrive Clutch
34206	34206-32010	Spring Sub-Assy, Underdrive Clutch Return
34206	90520-46011	Ring, Shaft Snap (For Underdrive Return Spring)
34207	34207-21010	Spring Sub-Assy, Underdrive Brake Return
34207	90520-59004	Ring, Snap (For Underdrive Brake Return Spring)
34253	34253-21010	Piston, Underdrive Brake
34253	90301-62007	Ring, O (For Underdrive Brake Piston)
34253	90301-99094	Ring, O (For Underdrive Brake Piston)
34261	34261-28040	Disc, Underdrive Clutch, No.1
34262	34262-32010	Disc, Underdrive Clutch, No.2
34263	34263-32010	Plate, Underdrive Clutch, No.1
34264	34264-32010	Plate, Underdrive Clutch, No.2
34265	34265-32010	Flange, Underdrive Clutch, No.1
34265	34265-32020	Flange, Underdrive Clutch, No.1
34265	34265-32030	Flange, Underdrive Clutch, No.1
34265	34265-33030	Flange, Underdrive Clutch, No.1
34265	34265-33040	Flange, Underdrive Clutch, No.1
34265	34265-33050	Flange, Underdrive Clutch, No.1
34265	34265-33060	Flange, Underdrive Clutch, No.1
34265	90520-99041	Ring, Hole Snap (For Underdrive Clutch Flange No.1)
34266	34266-32010	Flange, Underdrive Clutch, No.2
34266	34266-32020	Flange, Underdrive Clutch, No.2
34266	34266-32030	Flange, Underdrive Clutch, No.2
34266	34266-32040	Flange, Underdrive Clutch, No.2
34266	34266-32050	Flange, Underdrive Clutch, No.2
34301	90365-48001	Bearing, Cylindrical Roller, No.1 (For Underdrive)
34301	90179-32002	Nut (For Underdrive Input Shaft)
34301	90369-43013	Bearing, Tapered Roller (For Underdrive)
34301	34733-32011	Race, Cylindrical Roller Bearing, Inner
34302	90374-37007	Bearing, Needle Roller(For Underdrive Planetary Sun Gear)
34330	34330-33030	Gear Assy, Underdrive Planetary
34330	34330-28H01	Gear Assy, Underdrive Planetary
34341	34341-33010	Gear, Underdrive Planetary Ring
34341	34341-28020	Gear, Underdrive Planetary Ring
34341	90521-99121	Ring, Hole Snap (For Underdrive Planetary Ring)
34360	34360-32011	Clutch Assy, Underdrive 1 Way
34360	90520-99040	Ring, Shaft Snap (For Underdrive 1 Way Clutch)
34365	34365-32011	Retainer, Outer Race
34736	34736-32010	Race, Thrust Bearing Underdrive, No.2
34736	34736-32020	Race, Thrust Bearing Underdrive, No.2
34736	90374-53004	Bearing, Thrust Needle Roller
34737	34737-21010	Race, Thrust Bearing Underdrive, No.3
41211	41211-32130	Pinion, Differential Drive
41211	41211-28H03	Pinion, Differential Drive

OEM	Part name	Category
34204-28020	Drum Sub-Assy, Underdrive Clutch	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34204-32010	Drum Sub-Assy, Underdrive Clutch	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34205-32010	Piston Set, Underdrive Clutch	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34206-32010	Spring Sub-Assy, Underdrive Clutch Return	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34207-21010	Spring Sub-Assy, Underdrive Brake Return	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34253-21010	Piston, Underdrive Brake	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34261-28040	Disc, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34262-32010	Disc, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34263-32010	Plate, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34264-32010	Plate, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-32010	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-32020	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-32030	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-33030	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-33040	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-33050	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34265-33060	Flange, Underdrive Clutch, No.1	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34266-32010	Flange, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34266-32020	Flange, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34266-32030	Flange, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34266-32040	Flange, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34266-32050	Flange, Underdrive Clutch, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34330-28H01	Gear Assy, Underdrive Planetary	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34330-33030	Gear Assy, Underdrive Planetary	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34341-28020	Gear, Underdrive Planetary Ring	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34341-33010	Gear, Underdrive Planetary Ring	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34360-32011	Clutch Assy, Underdrive 1 Way	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34365-32011	Retainer, Outer Race	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34733-32011	Race, Cylindrical Roller Bearing, Inner	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34736-32010	Race, Thrust Bearing Underdrive, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34736-32020	Race, Thrust Bearing Underdrive, No.2	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
34737-21010	Race, Thrust Bearing Underdrive, No.3	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
41211-28H03	Pinion, Differential Drive	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
41211-32130	Pinion, Differential Drive	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90179-32002	Nut (For Underdrive Input Shaft)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-44004	Ring, O (For Underdrive Clutch Drum)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-62007	Ring, O (For Underdrive Brake Piston)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90301-99094	Ring, O (For Underdrive Brake Piston)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90365-48001	Bearing, Cylindrical Roller, No.1 (For Underdrive)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90369-43013	Bearing, Tapered Roller (For Underdrive)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90374-37007	Bearing, Needle Roller(For Underdrive Planetary Sun Gear)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90374-53004	Bearing, Thrust Needle Roller	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90520-46011	Ring, Shaft Snap (For Underdrive Return Spring)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90520-59004	Ring, Snap (For Underdrive Brake Return Spring)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90520-99040	Ring, Shaft Snap (For Underdrive 1 Way Clutch)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90520-99041	Ring, Hole Snap (For Underdrive Clutch Flange No.1)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
90521-99121	Ring, Hole Snap (For Underdrive Planetary Ring)	Overdrive Gear (Atm) ([12.2011 - ] U241E (1112- )ACV51)
