Search › Model › ACV51
ACV51

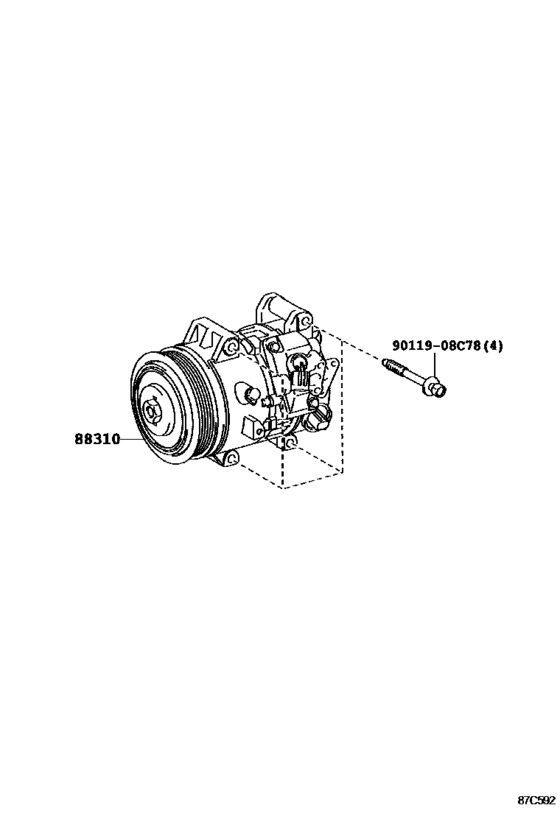

Heating & Air Conditioning - Compressor ([12.2011 - 03.2015] (1112-1502)ACV51..TH ; (1112-1503)MA,TAIW ; (111 2-1504)ACV51..VN) 3
| # | OEM | Part name |
|---|---|---|
| 88310 | 88310-06550 | Compressor Assy, W/pulley |
| 88310 | 88310-06551 | Compressor Assy, W/pulley |
| 9011908 | 90119-08C78 | Bolt, No.2(For Alternator) |
| OEM | Part name | Category |
|---|---|---|
| 88310-06550 | Compressor Assy, W/pulley | Heating & Air Conditioning - Compressor ([12.2011 - 03.2015] (1112-1502)ACV51..TH ; (1112-1503)MA,TAIW ; (111 2-1504)ACV51..VN) |
| 88310-06551 | Compressor Assy, W/pulley | Heating & Air Conditioning - Compressor ([12.2011 - 03.2015] (1112-1502)ACV51..TH ; (1112-1503)MA,TAIW ; (111 2-1504)ACV51..VN) |
| 90119-08C78 | Bolt, No.2(For Alternator) | Heating & Air Conditioning - Compressor ([12.2011 - 03.2015] (1112-1502)ACV51..TH ; (1112-1503)MA,TAIW ; (111 2-1504)ACV51..VN) |
