Search › Model › ACV51

ACV51

Toyota CAMRY-VISTA-AURION · 2011 · 3,158 parts · 186 categories
ACV51 ×

← Back to categories

3,158 items

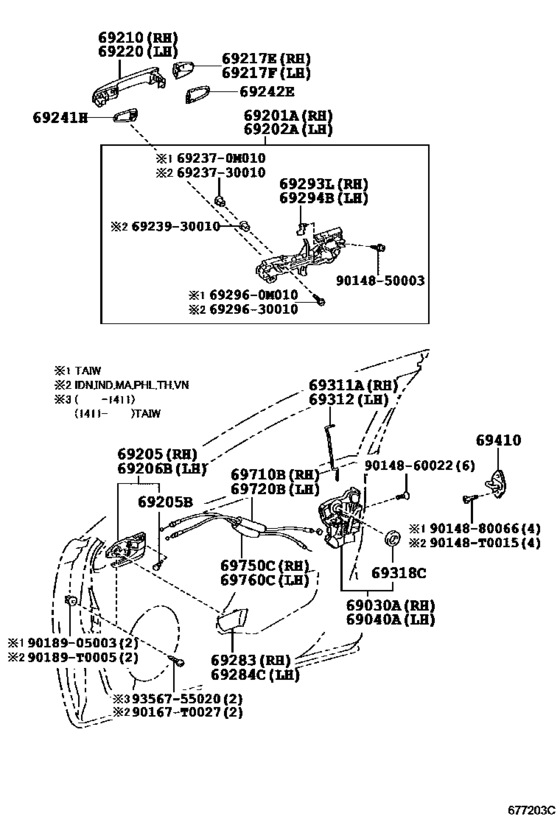

Front Door Lock & Handle ([12.2011 - 03.2015] (1112-1502)IDN,PHL,TH ; (1112-1503)MA,TAIW ; (11 12-1504)IND,VN) 54
#OEMPart name
69030 69030-06110 Lock Assy, Front Door W/motor, Rh
69040 69040-06100 Lock Assy, Front Door W/motor, Lh
69201 69201-52130 Frame Sub-Assy, Front Door Outside Handle, Rh
69202 69202-52070 Frame Sub-Assy, Front Door Outside Handle, Lh
69205 69205-33120-C0 Handle Sub-Assy, Front Door Inside, Rh
69205 90541-04027 Cushion(For Front Door Inside Handle)
69205 69205-33111-C0 Handle Sub-Assy, Front Door Inside, Rh
69206 69206-33130-C0 Handle Sub-Assy, Front Door Inside, Lh
69206 69206-33121-C0 Handle Sub-Assy, Front Door Inside, Lh
69210 69211-52901 Handle Assy, Front Door, Outside Rh
69210 69210-33120-A1 Handle Assy, Front Door, Outside Rh
69210 69210-33120-B3 Handle Assy, Front Door, Outside Rh
69210 69210-33120-B4 Handle Assy, Front Door, Outside Rh
69210 69210-33120-C0 Handle Assy, Front Door, Outside Rh
69217 69217-52901 Cover, Front Door Outside Handle, Rh
69217 69217-52902 Cover, Front Door Outside Handle, Rh
69217 69250-33010-A1 Cover, Front Door Outside Handle, Rh
69217 69250-33010-B3 Cover, Front Door Outside Handle, Rh
69217 69250-33010-B4 Cover, Front Door Outside Handle, Rh
69217 69250-33010-C0 Cover, Front Door Outside Handle, Rh
69217 69250-33020-A1 Cover, Front Door Outside Handle, Lh
69217 69250-33020-B3 Cover, Front Door Outside Handle, Rh
69217 69250-33020-B4 Cover, Front Door Outside Handle, Rh
69217 69250-33020-C0 Cover, Front Door Outside Handle, Lh
69220 69210-33110-A1 Handle Assy, Rear Door Outside, Rh
69220 69210-33110-B3 Handle Assy, Front Door, Outside Rh
69220 69210-33110-B4 Handle Assy, Front Door, Outside Rh
69220 69210-33110-C0 Handle Assy, Rear Door Outside, Rh
69241 69241-52020 Pad, Rear Door Outside Handle, Front
69242 69242-52030 Pad, Rear Door Outside Handle, Front
69283 69283-47010-C0 Plug, Front Door Inside Handle Bezel, Rh
69284 69284-47010-C0 Plug, Front Door Inside Handle Bezel, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69294 69293-12040 Snap, Front Door Outside Handle
69311 69311-06131 Rod, Front Door Lock Open, Rh
69312 69312-06131 Rod, Front Door Lock Open, Lh
69318 69318-51010 Seal, Front Door Lock Hole, Rh
69410 69410-02040 Plate Assy, Front Door Lock Striker
69710 69710-06130 Cable Assy, Front Door Lock Remote Control, Rh
69750 69750-06120 Cable Assy, Front Door Inside Locking, Rh
90148 90148-T0015 SCREWHEXALOBULAR
90167 90167-T0027 SCREW PAN TAPPING
90189 90189-T0005 GROMMET SCREW
692370 69237-0M010 Retainer, Door Outside Handle
692960 69296-0M010 Screw, Door Inside Handle
6923730010 69237-30010 Nut, Front Door Handle
6923930010 69239-30010 Bush(For Rear Door Outside Handle)
6929630010 69296-30010 Screw, Door Inside Handle
9014850003 90148-50003 Screw Hex Lobular
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880066 90148-80066 SCREW HEXALOBULAR
9018905003 90189-05003 CLIP
9356755020 93567-55020 SCREW
