Search › Model › ACV51
ACV51

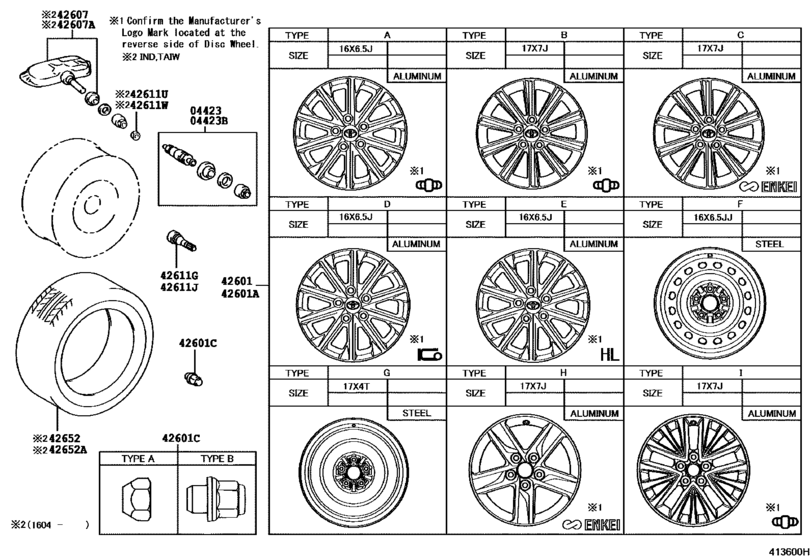

Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) 7
| # | OEM | Part name |
|---|---|---|
| 42601 | 42611-06A50 | Wheel, Disc |
| 42601 | 42611-06410 | Wheel, Disc |
| 42601 | 90942-01033 | Nut, Hub (For Axle) |
| 42601 | 42611-06A60 | Wheel, Disc |
| 42603 | 42603-06090 | Ornament Sub-Assy, Wheel Hub |
| 42611 | 90080-94031 | Valve (For Tubeless Tire) |
| 42611 | 90942-05009 | Valve (For Tubeless Tire) |
| OEM | Part name | Category |
|---|---|---|
| 42603-06090 | Ornament Sub-Assy, Wheel Hub | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 42611-06410 | Wheel, Disc | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 42611-06A50 | Wheel, Disc | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 42611-06A60 | Wheel, Disc | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 90080-94031 | Valve (For Tubeless Tire) | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 90942-01033 | Nut, Hub (For Axle) | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
| 90942-05009 | Valve (For Tubeless Tire) | Disc Wheel & Wheel Cap ([12.2011 - ] (1112- )) |
