ACV51

Toyota CAMRY-VISTA-AURION · 2011 · 3,158 parts · 186 categories

← Back to categories

3,158 items

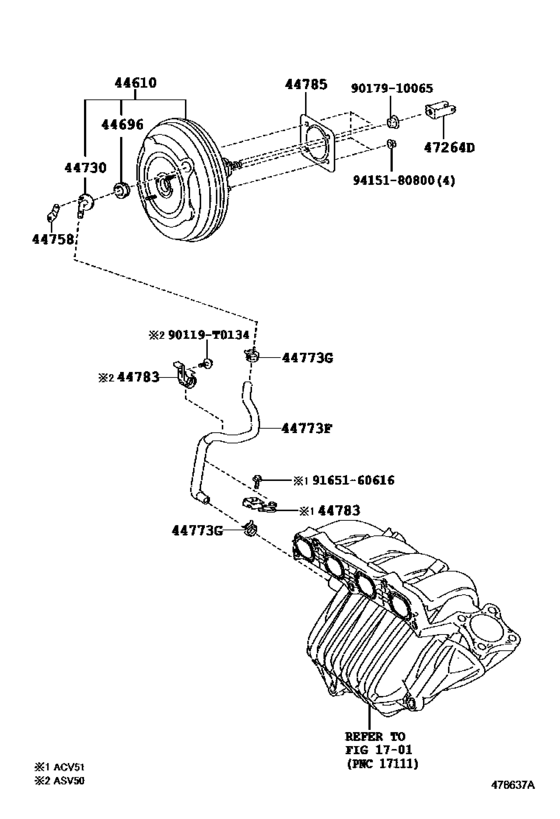

Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA) 15

#	OEM	Part name
44610	44610-06520	Booster Assy, Brake
44610	44610-06600	Booster Assy, Brake
44696	90480-24015	Grommet, Check Valve
44730	44730-10020	Valve Assy, Vacuum Check(For Brake)
44758	44758-32070	Bracket, Vacuum Check Valve
44773	44773-06120	Hose, Union To Check Valve
44773	90467-16014	Clip(For Vacuum Hose)
44783	44783-44010	Clamp, Vacuum Hose
44785	44785-12040	Gasket, Brake Booster
47264	47264-22040	Clevis, Brake Master Cylinder Push Rod
47264	47264-52050	Clevis, Brake Master Cylinder Push Rod
90119	90119-T0134	BOLT WWASHER
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9165160616	91651-60616	BOLT
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
44610-06520	Booster Assy, Brake	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44610-06600	Booster Assy, Brake	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44730-10020	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44758-32070	Bracket, Vacuum Check Valve	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44773-06120	Hose, Union To Check Valve	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44783-44010	Clamp, Vacuum Hose	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
44785-12040	Gasket, Brake Booster	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
47264-22040	Clevis, Brake Master Cylinder Push Rod	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
47264-52050	Clevis, Brake Master Cylinder Push Rod	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
90119-T0134	BOLT WWASHER	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
90467-16014	Clip(For Vacuum Hose)	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
90480-24015	Grommet, Check Valve	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
91651-60616	BOLT	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)
94151-80800	Nut (For Transmission Control Cable)	Brake Booster & Vacuum Tube ([05.2013 - ] (1302- )ASV50..TH ; (1305- )ACV51,ASV50..E ,G..MA)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 186
Collected: 2026-08-02
