Search › Model › ACV45

ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories
ACV45 ×

← Back to categories

4,489 items

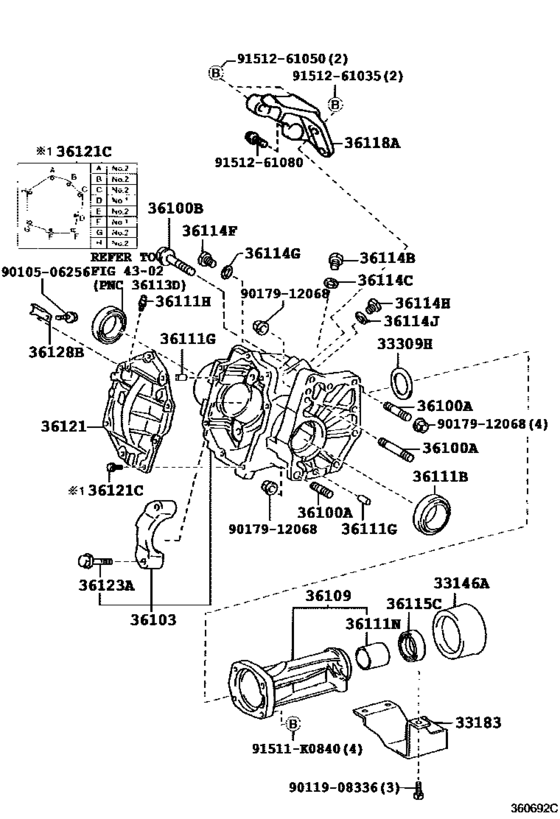

Transfer Case & Extension Housing ([01.2006 - ] (0601- )ACV45) 75
#OEMPart name
33146 33146-30020 Deflector, Extension Housing Dust(Mtm)
33183 33183-21040 Damper, Transfer Dynamic
33309 36275-33010 Washer, Transfer Output Shaft
33309 36275-33030 Washer, Transfer Output Shaft
33309 36275-33050 Washer, Transfer Output Shaft
33309 36275-33070 Washer, Transfer Output Shaft
33309 36275-33090 Washer, Transfer Output Shaft
33309 36275-33110 Washer, Transfer Output Shaft
33309 36275-33130 Washer, Transfer Output Shaft
33309 36275-33150 Washer, Transfer Output Shaft
33309 36275-33170 Washer, Transfer Output Shaft
33309 36275-33190 Washer, Transfer Output Shaft
33309 36275-33210 Washer, Transfer Output Shaft
33309 36275-33230 Washer, Transfer Output Shaft
33309 36275-33250 Washer, Transfer Output Shaft
33309 36275-33270 Washer, Transfer Output Shaft
33309 36275-33290 Washer, Transfer Output Shaft
33309 36275-33310 Washer, Transfer Output Shaft
33309 36275-33330 Washer, Transfer Output Shaft
33309 36275-33350 Washer, Transfer Output Shaft
33309 36275-33370 Washer, Transfer Output Shaft
33309 36275-33390 Washer, Transfer Output Shaft
33309 36275-33410 Washer, Transfer Output Shaft
33309 36275-33430 Washer, Transfer Output Shaft
33309 36275-33450 Washer, Transfer Output Shaft
33309 36275-48010 Washer, Transfer Output Shaft
33309 36275-48020 Washer, Transfer Output Shaft
33309 36275-48030 Washer, Transfer Output Shaft
33309 36275-48040 Washer, Transfer Output Shaft
33309 36275-48050 Washer, Transfer Output Shaft
33309 36275-48060 Washer, Transfer Output Shaft
33309 36275-48070 Washer, Transfer Output Shaft
33309 36275-48080 Washer, Transfer Output Shaft
33309 36275-48090 Washer, Transfer Output Shaft
33309 36275-48100 Washer, Transfer Output Shaft
33309 36275-48110 Washer, Transfer Output Shaft
33309 36275-48120 Washer, Transfer Output Shaft
33309 36275-48130 Washer, Transfer Output Shaft
33309 36275-48140 Washer, Transfer Output Shaft
36100 90116-12028 Bolt, Stud (For Transfer & Transaxle Setting)
36100 90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)
36100 90116-12041 Bolt, Stud (For Transfer & Transaxle Setting)
36100 90105-12298 Bolt (For Transfer & Transaxle Setting)
36103 36103-28060 Case Sub-Assy, Transfer
36103 36103-48011 Case Sub-Assy, Transfer
36103 90366-45054 Bearing(For Ring Gear Mounting Case)
36103 36103-48010 Case Sub-Assy, Transfer
36109 36109-33010 Housing Sub-Assy, Transfer Extension
36109 36109-48010 Housing Sub-Assy, Transfer Extension
36111 90311-55002 Seal, Oil (For Transfer Case)
36111 90250-08046 Pin, Straight(For Intake Manifold Setting)
36111 90250-10017 Pin, Straight(For Clutch Housing Set)
36111 90930-03133 Plug, Breather
36111 90999-73105 Bush(For Manual Transmission Extension Housing)
36114 90341-18055 Plug, No.1 (For Transfer Case)
36114 90341-18072 Plug, No.1 (For Transfer Case)
36114 12157-10010 Gasket (For Drain Plug)
36114 90341-18057 Drain Plug (with Magnet)
36114 90341-18006 Plug (No magnet)
36115 90311-38090 Seal, Type T Oil (For Transfer Extension Housing)
36118 36118-33020 Plate, Transfer Stiffener, Rh
36121 36121-28010 Cover, Transfer Case, No.1
36121 90105-08351 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36121 90105-08435 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36121 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
36123 41114-16010 Bolt, Differential Bearing Cap
36128 36128-28010 Deflector, Breather Oil
91511 91511-K0840 Bolt(For Crankshaft Bearing Cap Set)
9010506256 90105-06256 BOLT WASHER BASED
9011908336 90119-08336 BOLT
9017912068 90179-12068 Nut(For Transaxle Case Cover)
9151261035 91512-61035 Bolt(For Transaxle Case & Engine Setting)
9151261035 90080-10204 New Genuine Part
9151261050 91512-61050 Bolt(For Alternator)
9151261080 91512-61080 Bolt
Source
Public OEM parts-catalog data
Variants
1 / 1
Category
195
Collected
2026-08-02
