Search › Model › ACV45

ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

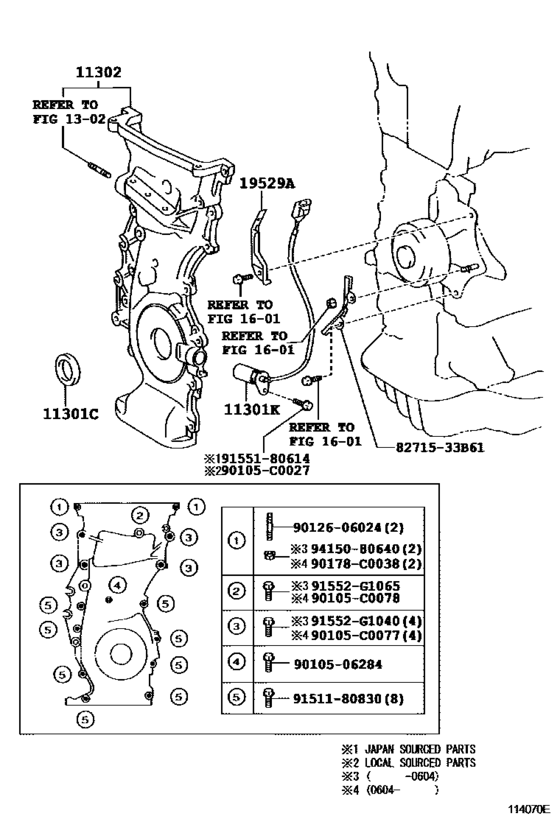

Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101)) 20

#	OEM	Part name
11301	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05047	Sensor, Crank Position
11301	90919-05067	Sensor, Crank Position
11302	11310-0H060	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-28071	Cover Sub-Assy, Timing Chain Or Belt
19529	19529-28010	Clamp
19529	19529-28050	Clamp
90105	90105-C0027	New Genuine Part
90105	90105-C0077	New Genuine Part
90105	90105-C0078	New Genuine Part
90178	90178-C0038	New Genuine Part
91552	91552-G1040	BOLT FLANGE
91552	91552-G1065	BOLT FLANGE
8271533	82715-33B61	Bracket,wiring Harness Clamp
9010506284	90105-06284	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9151180830	91511-80830	Bolt(For Alternator)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
11310-0H060	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
11310-28071	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
19529-28010	Clamp	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
19529-28050	Clamp	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
82715-33B61	Bracket,wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90105-C0027	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90105-C0077	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90105-C0078	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90126-06024	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90178-C0038	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90919-05047	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
90919-05067	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
91552-G1040	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
91552-G1065	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
94150-80640	NUT FLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - 01.2011] (0601-1101))
