Search › Model › ACV45

ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

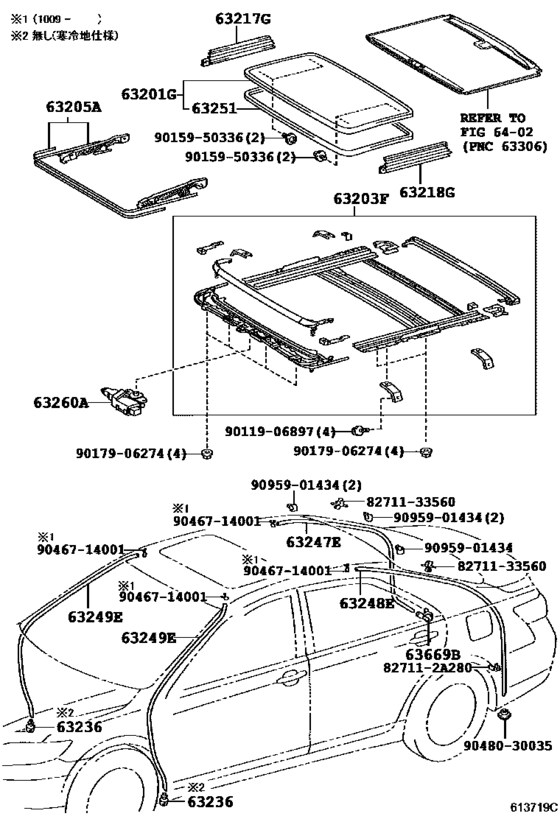

Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- )) 28

#	OEM	Part name
63201	63201-33100	Glass Sub-Assy, Sliding Roof
63203	63203-33100	Housing Sub-Assy, Sliding Roof
63205	63205-48010	Cable Sub-Assy, Sliding Roof Drive
63217	63217-48030	Garnish, Sliding Roof Side, Rh
63218	63218-48030	Garnish, Sliding Roof Side, Lh
63236	63236-08010	Clamp, Sliding Roof Or Removable Roof Drain Hose
63247	63247-33010	Hose, Sliding Roof Drain, Rear Rh
63247	63247-33011	Hose, Sliding Roof Drain, Rear Rh
63248	63248-33010	Hose, Sliding Roof Drain, Rear Lh
63248	63248-33011	Hose, Sliding Roof Drain, Rear Lh
63249	63249-33090	Hose, Sliding Roof Drain
63249	63249-33091	Hose, Sliding Roof Drain
63249	63249-33120	Hose, Sliding Roof Drain
63249	63249-33121	Hose, Sliding Roof Drain
63251	63251-30090	Weatherstrip, Sliding Roof Panel Or Removable Roof
63251	63251-30100	Weatherstrip, Sliding Roof Panel Or Removable Roof
63260	63260-33060	Gear Sub-Assy, Sliding Roof Drive
63260	63260-33061	Gear Sub-Assy, Sliding Roof Drive
63669	63669-50010	Grommet, Sliding Roof Drain
827112	82711-2A280	Wire, Fuse To Fuse(for Combustion Heater)
8271133560	82711-33560	Wire, Fuse To Fuse(for Combustion Heater)
9011906897	90119-06897	BOLT WWASHER
9015950336	90159-50336	SCREW WWASHER
9017906274	90179-06274	Nut
9046714001	90467-14001	Clip Or Clamp(For Ventilation Hose)
9046714001	90466-T0026	Clip Or Clamp(For Ventilation Hose)
9048030035	90480-30035	Grommet, Sliding Roof Drain
9095901434	90959-01434	Clamp, Sliding Roof Or Removable Roof Drain Hose

OEM	Part name	Category
63201-33100	Glass Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63203-33100	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63205-48010	Cable Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63217-48030	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63218-48030	Garnish, Sliding Roof Side, Lh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63236-08010	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63247-33010	Hose, Sliding Roof Drain, Rear Rh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63247-33011	Hose, Sliding Roof Drain, Rear Rh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63248-33010	Hose, Sliding Roof Drain, Rear Lh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63248-33011	Hose, Sliding Roof Drain, Rear Lh	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63249-33090	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63249-33091	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63249-33120	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63249-33121	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63251-30090	Weatherstrip, Sliding Roof Panel Or Removable Roof	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63251-30100	Weatherstrip, Sliding Roof Panel Or Removable Roof	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63260-33060	Gear Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63260-33061	Gear Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
63669-50010	Grommet, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
82711-2A280	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
82711-33560	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90119-06897	BOLT WWASHER	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90159-50336	SCREW WWASHER	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90466-T0026	Clip Or Clamp(For Ventilation Hose)	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90467-14001	Clip Or Clamp(For Ventilation Hose)	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90480-30035	Grommet, Sliding Roof Drain	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
90959-01434	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([01.2006 - ] ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ (0601- ))
