Search › Model › ACV45
ACV45

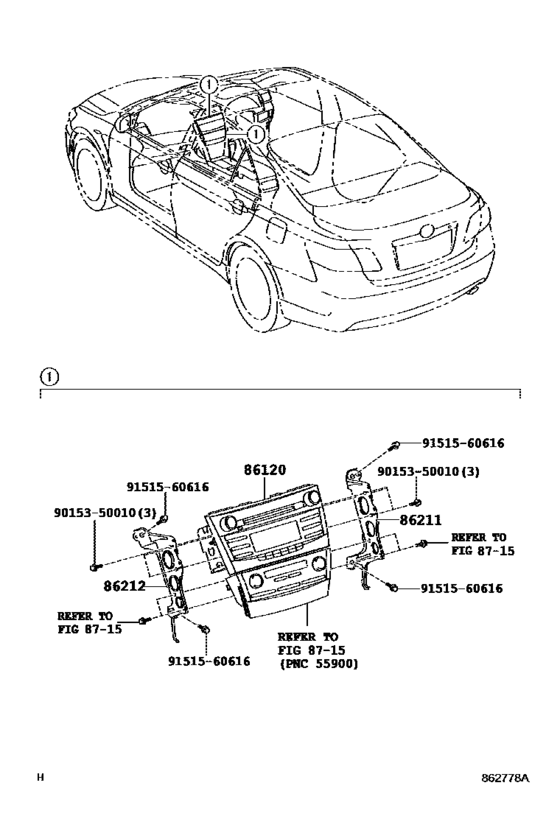

Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) 6
| # | OEM | Part name |
|---|---|---|
| 86120 | 86120-33830 | Receiver Assy, Radio |
| 86120 | 86120-33D30 | Receiver Assy, Radio |
| 86211 | 86211-33210 | Bracket, Radio, No.1 |
| 86212 | 86212-33210 | Bracket, Radio, No.2 |
| 9015350010 | 90153-50010 | BOLT |
| 9151560616 | 91515-60616 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 86120-33830 | Receiver Assy, Radio | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
| 86120-33D30 | Receiver Assy, Radio | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
| 86211-33210 | Bracket, Radio, No.1 | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
| 86212-33210 | Bracket, Radio, No.2 | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
| 90153-50010 | BOLT | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
| 91515-60616 | BOLT FLANGE | Radio Receiver & Amplifier & Condenser ([01.2006 - 01.2009] (0601-0901)) |
