ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

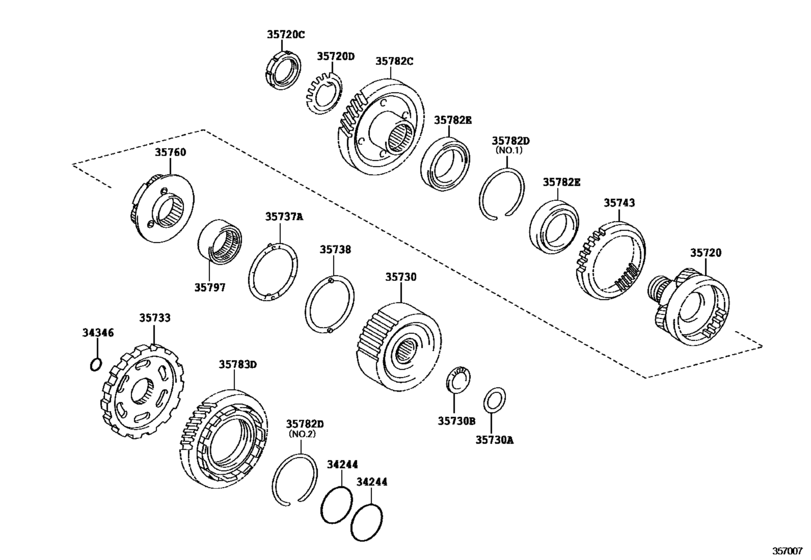

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45) 20

#	OEM	Part name
34244	34244-21010	Ring, Underdrive Clutch Drum Oil Seal
34346	34346-21011	Ring, Underdrive Output Shaft Oil Seal
34346	34346-28010	Ring, Underdrive Output Shaft Oil Seal
35720	35720-28080	Gear Assy, Front Planetary
35720	90179-46001	Nut (For Front Planetary Gear)
35720	90209-46001	Washer (For Front Planetary Gear)
35730	35730-28020	Gear Assy, Rear Planetary Sun
35730	35789-21010	Race, Thrust Bearing (For Rear Planetary Sun Gear)
35730	90374-33003	Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)
35733	35733-21010	Gear, Parking Lock
35737	35737-28010	Washer, Planetary Carrier Thrust, No.1
35738	35737-28020	Washer, Planetary Carrier Thrust, No.1
35743	35743-28010	Gear, Front Planetary Ring
35760	35760-28010	Gear Assy, Rear Planetary
35782	35782-28010	Gear, Counter Drive
35782	90520-84001	Ring, Hole Snap(For Counter Drive Gear)
35782	90520-89004	Ring, Hole Snap(For Counter Drive Gear)
35782	90366-60009	Bearing(For Counter Drive Gear)
35783	35783-28010	Gear, Counter Driven
35797	35797-21010	Race, 1 Way Clutch Inner

OEM	Part name	Category
34244-21010	Ring, Underdrive Clutch Drum Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
34346-21011	Ring, Underdrive Output Shaft Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
34346-28010	Ring, Underdrive Output Shaft Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35720-28080	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35730-28020	Gear Assy, Rear Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35733-21010	Gear, Parking Lock	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35737-28010	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35737-28020	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35743-28010	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35760-28010	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35782-28010	Gear, Counter Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35783-28010	Gear, Counter Driven	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35789-21010	Race, Thrust Bearing (For Rear Planetary Sun Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
35797-21010	Race, 1 Way Clutch Inner	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90179-46001	Nut (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90209-46001	Washer (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90366-60009	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90374-33003	Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90520-84001	Ring, Hole Snap(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
90520-89004	Ring, Hole Snap(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] U140F (0601- )ACV45)
