ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

← Back to categories

4,489 items

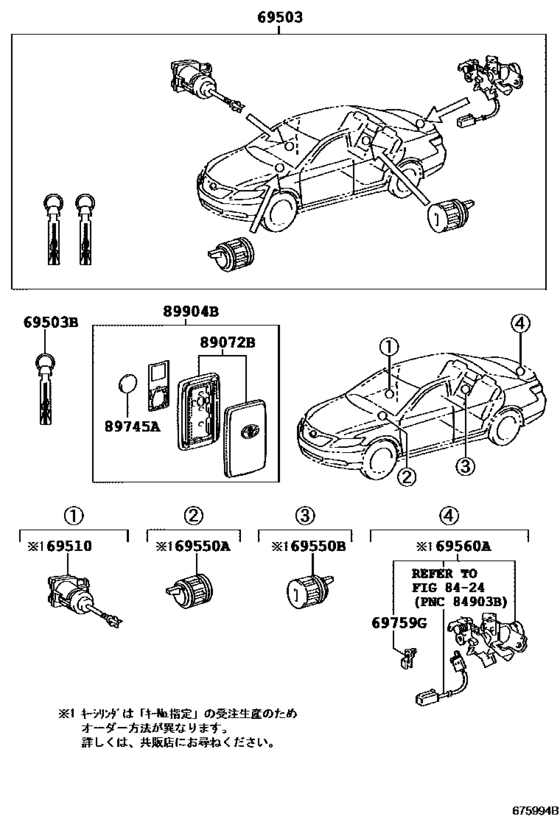

Lock Cylinder Set ([01.2006 - ] (0601- )) 16

#	OEM	Part name
69503	69005-33A80	Cylinder Set, Lock
69503	69515-52110	Key, Cut - for blank key →
69510	69510-33180	Cylinder Assy, Front Door Lock, Rh
69550	69550-30150	Cylinder Assy, Glove Compartment Door Lock
69560	69560-33250	Cylinder Assy, Luggage Compartment Door Lock
69759	69759-24080	Snap, Front Door Lock Control Rod
89072	89072-33610	Housing Set, Door Control Transmitter
89072	89072-33620	Housing Set, Door Control Transmitter (For Smart Key)
89745	89745-52020	Battery, Transmitter
89904	89904-33160	Transmitter Sub-Assy, Electrical Key
89904	89904-33610	Transmitter Sub-Assy, Electrical Key
89904	89904-33161	Transmitter Sub-Assy, Electrical Key
89904	89904-33290	Transmitter Sub-Assy, Electrical Key
89904	89904-33291	Transmitter Sub-Assy, Electrical Key
89904	89904-33330	Transmitter Sub-Assy, Electrical Key
89904	89904-33590	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-33A80	Cylinder Set, Lock	Lock Cylinder Set ([01.2006 - ] (0601- ))
69510-33180	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([01.2006 - ] (0601- ))
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([01.2006 - ] (0601- ))
69550-30150	Cylinder Assy, Glove Compartment Door Lock	Lock Cylinder Set ([01.2006 - ] (0601- ))
69560-33250	Cylinder Assy, Luggage Compartment Door Lock	Lock Cylinder Set ([01.2006 - ] (0601- ))
69759-24080	Snap, Front Door Lock Control Rod	Lock Cylinder Set ([01.2006 - ] (0601- ))
89072-33610	Housing Set, Door Control Transmitter	Lock Cylinder Set ([01.2006 - ] (0601- ))
89072-33620	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([01.2006 - ] (0601- ))
89745-52020	Battery, Transmitter	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33160	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33161	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33290	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33291	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33330	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33590	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
89904-33610	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2006 - ] (0601- ))
