ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

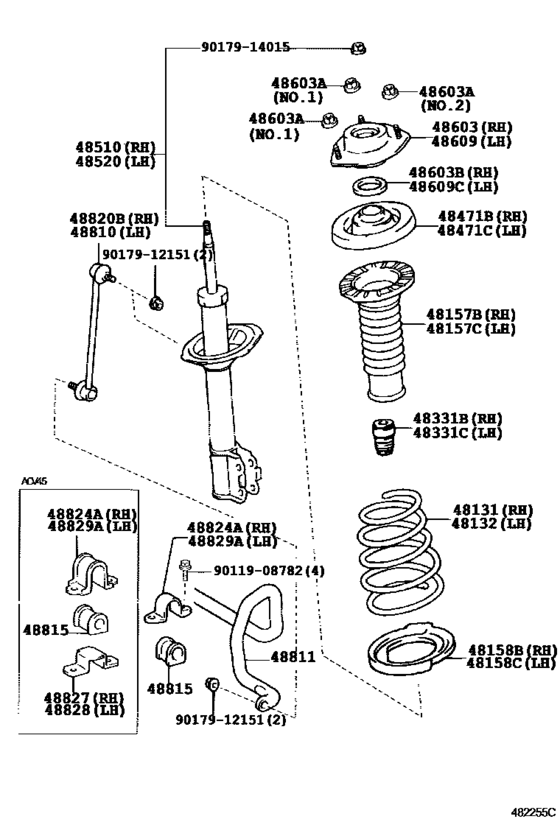

Front Spring & Shock Absorber ([01.2006 - ] (0601- )) 22

#	OEM	Part name
48131	48131-33A80	Spring, Front Coil, Rh
48157	48157-33072	Insulator, Front Coil Spring, Upper
48158	48158-33031	Insulator, Front Coil Spring, Lower
48158	48158-33050	Insulator, Front Coil Spring, Lower Rh
48331	48331-33032	Bumper, Front Spring
48471	48471-41010	Seat, Front Coil Spring, Upper
48510	48510-80310	Absorber Assy, Shock, Front Rh
48520	48520-80091	Absorber Assy, Shock, Front Lh
48603	48609-33190	Support Sub-Assy, Front Suspension
48603	90178-10005	Nut(For Front Suspension Support)
48603	90178-10017	Nut(For Front Suspension Support)
48603	90903-63014	Bearing(For Front Suspension Support)
48810	48820-33050	Front Stabilizer Link Assy
48811	48811-33180	Bar, Stabilizer, Front
48815	48815-33110	Bush, Front Stabilizer Bar, No.1
48824	48824-28180	Bracket, Front Stabilizer, No.1
48824	48824-0E010	Bracket, Front Stabilizer, No.1
48827	48827-48010	Bracket, Front Stabilizer, No.2
48827	48827-08010	Bracket, Front Stabilizer, No.2
9011908782	90119-08782	Bolt, W/washer(For Transmission Case Cover)
9017912151	90179-12151	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)

OEM	Part name	Category
48131-33A80	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48157-33072	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48158-33031	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48158-33050	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48331-33032	Bumper, Front Spring	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48471-41010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48510-80310	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48520-80091	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48609-33190	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48811-33180	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48815-33110	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48820-33050	Front Stabilizer Link Assy	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48824-0E010	Bracket, Front Stabilizer, No.1	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48824-28180	Bracket, Front Stabilizer, No.1	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48827-08010	Bracket, Front Stabilizer, No.2	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
48827-48010	Bracket, Front Stabilizer, No.2	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90119-08782	Bolt, W/washer(For Transmission Case Cover)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90178-10005	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90178-10017	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
90903-63014	Bearing(For Front Suspension Support)	Front Spring & Shock Absorber ([01.2006 - ] (0601- ))
