Search › Model › ACV45

ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

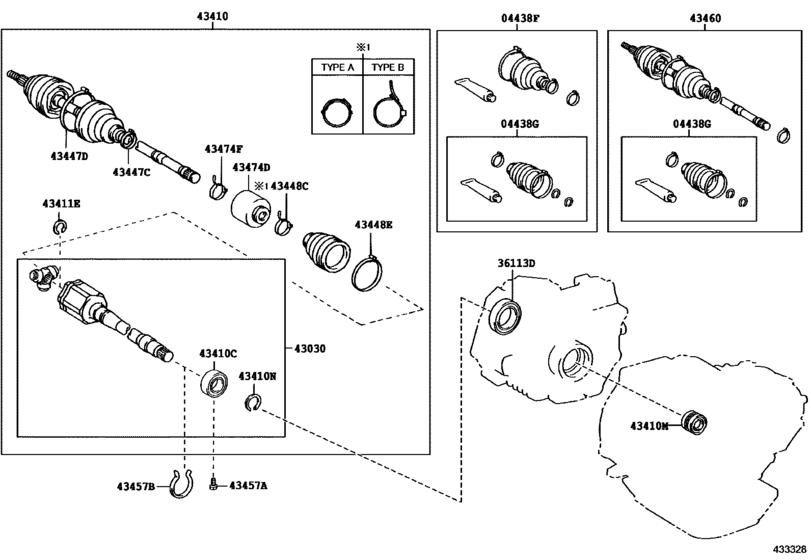

Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45) 23

#	OEM	Part name
4438	04427-33040	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-44040	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-44041	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-33050	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
36113	90311-36006	Seal, Oil (For Transfer Case Rh)
43030	43030-28021	Joint Assy, Front Drive Inboard, Rh
43410	43410-33300	Shaft Assy, Front Drive, Rh
43410	90363-36006	Bearing (For Front Drive Shaft)
43410	90316-34001	Oil Seal, Front Drive Shaft, Rh
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43457	90901-19060	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)
43460	43460-39265	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-48020	Damper, Drive Shaft
43474	43474-48080	Damper, Front Drive Shaft, Rh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04427-33040	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
04427-44040	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
04427-44041	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
04437-33050	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43030-28021	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43410-33300	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43460-39265	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43474-48020	Damper, Drive Shaft	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
43474-48080	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90311-36006	Seal, Oil (For Transfer Case Rh)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90316-34001	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90363-36006	Bearing (For Front Drive Shaft)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90901-19060	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([01.2006 - ] ﾗｲﾄ (0601- )ACV45)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 195
Collected: 2026-08-02
