Search › Model › ACV45

ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

4,489 items

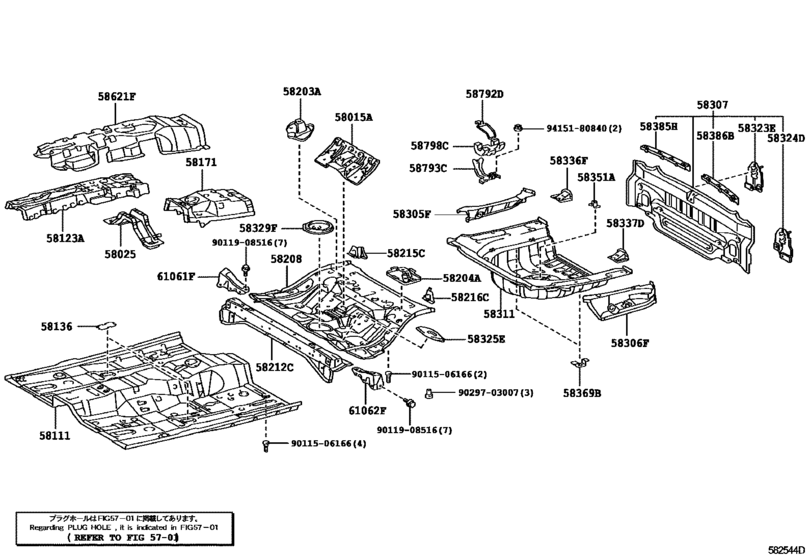

Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45) 40

#	OEM	Part name
58015	58015-33041	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58025	58025-33011	Reinforcement Sub-Assy, Drive Shaft Center Support
58111	58111-33080	Pan, Front Floor
58123	58013-33070	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58171	58171-33090	Reinforcement, Parking Brake Base
58203	58203-33031	Reinforcement Sub-Assy, Center Floor Panel, Rh
58204	58204-33020	Reinforcement Sub-Assy, Center Floor Panel, Lh
58208	58211-33153	Pan, Center Floor
58212	58202-33010	Pan Sub-Assy, Center Floor, Front
58215	58215-33040	Reinforcement, Center Floor Panel, No.2 Rh
58216	58216-33030	Reinforcement, Center Floor Panel, No.2 Lh
58305	58305-33070	Panel Sub-Assy, Rear Floor Side, Rh
58305	58305-06090	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-33030	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-33130	Panel Sub-Assy, Body Lower Back
58307	58307-33150	Panel Sub-Assy, Body Lower Back
58311	58311-33070	Pan, Rear Floor
58311	58311-33071	Pan, Rear Floor
58311	90333-30002	Cover, Front Floor Hole
58323	58323-33080	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-33060	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-33030	Cover, Rear Floor Service Hole
58329	58329-33010	Cover, Rear Floor Service Hole, No.2
58336	58336-33020	Reinforcement, Rear Floor Pan, Rh
58337	58337-33030	Reinforcement, Rear Floor Pan, Lh
58351	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58369	58369-32010	Bracket, Insulator Heat
58385	58385-33030	Bracket, Rear Bumper Cover, No.1
58386	58386-33010	Bracket, Rear Bumper Cover, No.2
58621	58621-33100	Silencer, Center Console, No.1
58792	58792-33010	Support, Jack
58793	58793-33010	Bracket, Jack Carrier, No.1
58798	58798-33010	Cushion, Jack Carrier
61061	61061-33010	Gusset Sub-Assy, Quarter Wheel House, No.1
61062	61062-33010	Gusset Sub-Assy, Quarter Wheel House, No.2
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011908516	90119-08516	BOLT
9029703007	90297-03007	Retainer, Rear Heater Mounting
9415180840	94151-80840	NUT, FLANGE

OEM	Part name	Category
58013-33070	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58015-33041	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58025-33011	Reinforcement Sub-Assy, Drive Shaft Center Support	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58111-33080	Pan, Front Floor	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58171-33090	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58202-33010	Pan Sub-Assy, Center Floor, Front	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58203-33031	Reinforcement Sub-Assy, Center Floor Panel, Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58204-33020	Reinforcement Sub-Assy, Center Floor Panel, Lh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58211-33153	Pan, Center Floor	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58215-33040	Reinforcement, Center Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58216-33030	Reinforcement, Center Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58305-06090	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58305-33070	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58306-33030	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58307-33130	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58307-33150	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58311-33070	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58311-33071	Pan, Rear Floor	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58323-33080	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58324-33060	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58325-33030	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58329-33010	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58336-33020	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58337-33030	Reinforcement, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58369-32010	Bracket, Insulator Heat	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58385-33030	Bracket, Rear Bumper Cover, No.1	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58386-33010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58621-33100	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58792-33010	Support, Jack	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58793-33010	Bracket, Jack Carrier, No.1	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
58798-33010	Cushion, Jack Carrier	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
61061-33010	Gusset Sub-Assy, Quarter Wheel House, No.1	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
61062-33010	Gusset Sub-Assy, Quarter Wheel House, No.2	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
90119-08516	BOLT	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
90333-30002	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
94151-80840	NUT, FLANGE	Floor Pan & Lower Back Panel ([01.2006 - ] (0601- )ACV45)
