ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

← Back to categories

4,489 items

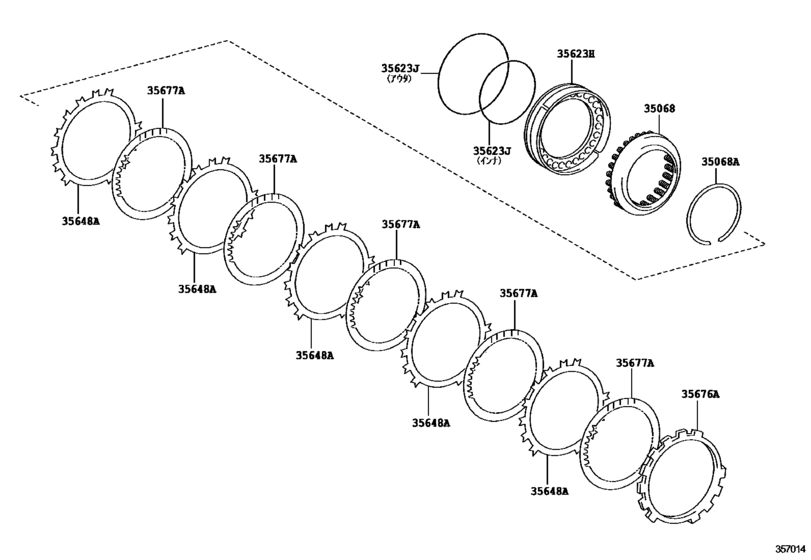

Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- )) 16

#	OEM	Part name
35068	35068-21011	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-99035	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-28020	Piston, 1St & Reverse Brake
35623	90301-99096	Ring, O (For Forward Clutch Piston)
35623	90301-99098	Ring, O (For 1St & Reverse Brake)
35623	90301-99134	Ring, O (For 1St & Reverse Brake)
35648	35692-21011	Plate, Clutch (For 1St & Reverse Brake)
35676	35678-21010	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21020	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21030	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21040	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21050	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21060	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21070	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21080	Flange, Brake (For 1St & Reverse Brake)
35677	35682-28010	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-21011	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35623-28020	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21010	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21020	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21030	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21040	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21050	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21060	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21070	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35678-21080	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35682-28010	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
35692-21011	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
90301-99096	Ring, O (For Forward Clutch Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
90301-99098	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
90301-99134	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
90520-99035	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2006 - ] U140F,U250E (0601- ))
