ACV45

Toyota CAMRY-VISTA-AURION · 2006 · 4,489 parts · 195 categories

← Back to categories

4,489 items

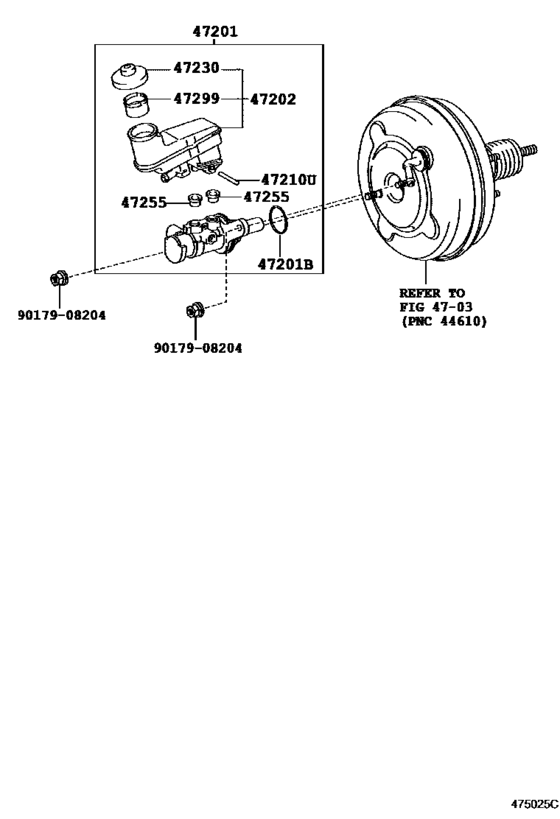

Brake Master Cylinder ([01.2006 - ] (0601- )) 11

#	OEM	Part name
47201	47201-33500	Cylinder Sub-Assy, Brake Master
47201	90015-AH001	Ring, O(For Brake Master Cylinder)
47202	47220-33090	Reservoir Sub-Assy, Brake Master Cylinder
47210	90015-AE401	Ring Pin, Brake Master Cylinder
47230	47230-33071	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-33072	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-52030	Cap Assy, Brake Master Cylinder Reservoir Filler
47255	90015-AT001	Grommet, Master Cylinder Reservoir
47299	47299-52110	Strainer, Brake Master Cylinder Reservoir
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER

OEM	Part name	Category
47201-33500	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.2006 - ] (0601- ))
47220-33090	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.2006 - ] (0601- ))
47230-33071	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.2006 - ] (0601- ))
47230-33072	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.2006 - ] (0601- ))
47230-52030	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.2006 - ] (0601- ))
47299-52110	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([01.2006 - ] (0601- ))
90015-AE401	Ring Pin, Brake Master Cylinder	Brake Master Cylinder ([01.2006 - ] (0601- ))
90015-AH001	Ring, O(For Brake Master Cylinder)	Brake Master Cylinder ([01.2006 - ] (0601- ))
90015-AT001	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([01.2006 - ] (0601- ))
90080-18070	NUT, WWASHER	Brake Master Cylinder ([01.2006 - ] (0601- ))
90179-08204	Nut	Brake Master Cylinder ([01.2006 - ] (0601- ))
