ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

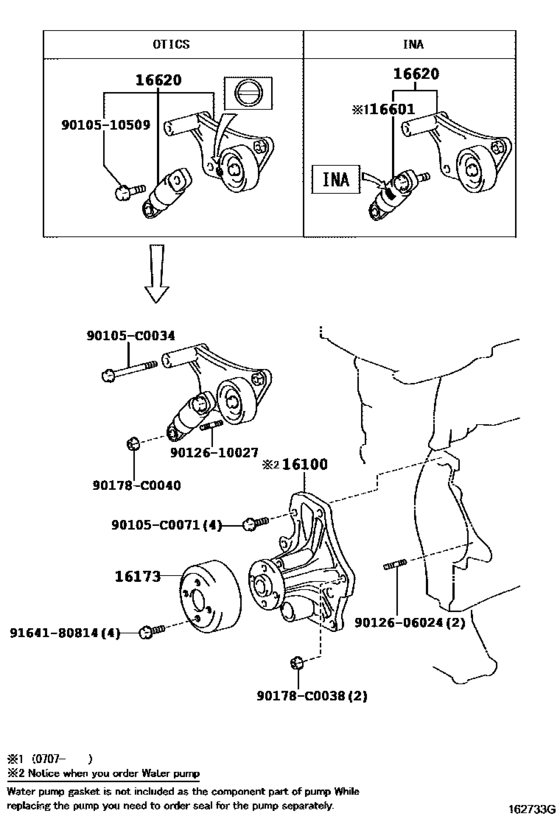

Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE) 24

#	OEM	Part name
16100	16100-0H040	Pump Assy, Engine Water
16100	16100-0H050	Pump Assy, Engine Water
16173	16173-0H040	Pulley, Water Pump
16173	16173-28020	Pulley, Water Pump
16173	16173-0H010	Pulley, Water Pump
16601	16601-28041	Tensioner Sub-Assy, V-Ribbed Belt
16601	16601-28050	Tensioner Sub-Assy, V-Ribbed Belt
16620	16620-0W110	Tensioner Assy, V-Ribbed Belt
16620	16620-28090	Tensioner Assy, V-Ribbed Belt
16620	16620-28070	Tensioner Assy, V-Ribbed Belt
16620	16620-28071	Tensioner Assy, V-Ribbed Belt
90105	90105-C0034	Bolt(For Alternator)
90105	90105-C0071	New Genuine Part
90178	90178-C0038	New Genuine Part
90178	90178-C0040	New Genuine Part
91511	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9010510509	90105-10509	New Genuine Part
9012606012	90126-06012	STUD, HEX LOBULAR
9012606024	90126-06024	STUD HEX LOBULAR
9012610027	90126-10027	STUD HEX LOBULAR
9151281085	91512-81085	Bolt(For Alternator)
9164180814	91641-80814	BOLTWWASHER
9415080640	94150-80640	NUT FLANGE
9415081041	94150-81041	NUT FLANGE

OEM	Part name	Category
16100-0H040	Pump Assy, Engine Water	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16100-0H050	Pump Assy, Engine Water	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16173-0H010	Pulley, Water Pump	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16173-0H040	Pulley, Water Pump	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16173-28020	Pulley, Water Pump	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16601-28041	Tensioner Sub-Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16601-28050	Tensioner Sub-Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16620-0W110	Tensioner Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16620-28070	Tensioner Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16620-28071	Tensioner Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
16620-28090	Tensioner Assy, V-Ribbed Belt	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90105-10509	New Genuine Part	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90105-C0034	Bolt(For Alternator)	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90105-C0071	New Genuine Part	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90126-06012	STUD, HEX LOBULAR	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90126-06024	STUD HEX LOBULAR	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90126-10027	STUD HEX LOBULAR	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90178-C0038	New Genuine Part	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
90178-C0040	New Genuine Part	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
91512-81085	Bolt(For Alternator)	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
91641-80814	BOLTWWASHER	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
94150-80640	NUT FLANGE	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)
94150-81041	NUT FLANGE	Water Pump ([05.2006 - ] (0605- )1AZFE,2AZFE)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 302
Collected: 2026-08-02
