Search › Model › ACV41

ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

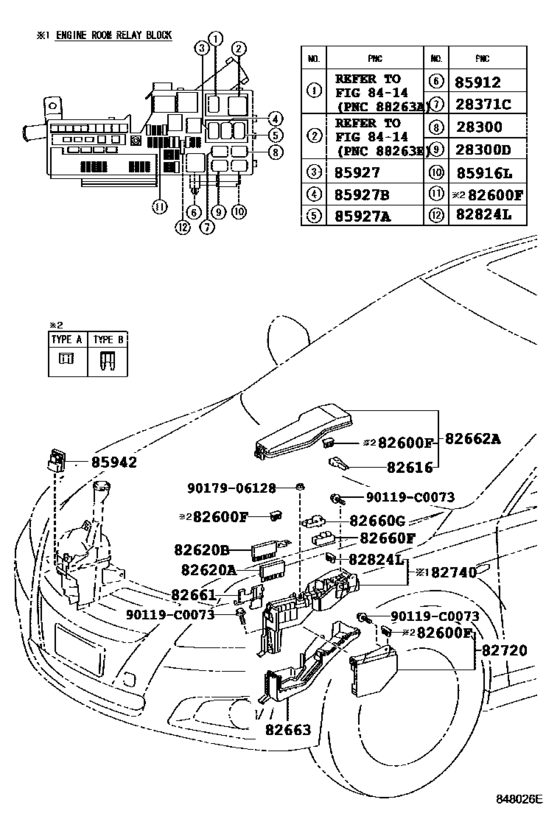

Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#) 45

#	OEM	Part name
28300	28300-21020	Relay Assy, Starter
28300	28300-28010	Relay Assy, Starter
28371	90987-T2001	Relay, Power Outlet Socket - DEFOGGER
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82600	90982-09020	Fusible Link
82600	90982-09021	Fusible Link
82600	90982-09022	Instrument Panel Fuse
82600	90982-09023	Instrument Panel Fuse
82600	90982-09024	Instrument Panel Fuse
82600	90982-09025	Instrument Panel Fuse
82600	90982-09011	Fusible Link
82616	82616-58010	Puller, Fuse
82620	82620-33030	Block Assy, Fusible Link
82620	82620-07050	Block Assy, Fusible Link
82660	82660-33010	Block Assy, Relay
82661	82661-07020	Cover, Relay Block, No.1
82662	82662-06080	Cover, Relay Block, Upper, No.1
82662	82662-06081	Cover, Relay Block, Upper, No.1
82662	82662-33140	Cover, Relay Block, Upper, No.1
82662	82662-33160	Cover, Relay Block, Upper, No.2
82663	82663-33070	Cover, Relay Block, Lower
82720	82720-06070	Block Assy, Engine Room Junction
82720	82720-33110	Block Assy, Engine Room Junction
82720	82720-33120	Block Assy, Engine Room Junction
82740	82740-33020	Block Assy, Engine Room Relay
82742	82742-33020	Block, Engine Room Relay, No.2
82824	82824-41010	Pin, Short
85912	90987-T4002	Relay Assy (For Heater Blower Motor)
85912	90987-04010	Relay Assy (For Heater Blower Motor)
85912	90987-T2003	Relay Assy (For Heater Blower Motor) - HEATER, NO.1
85916	90987-T2005	Relay, Water Pump
85927	90987-T4001	Relay Assy, Starter
85927	90987-02027	Relay
85927	90080-87009	Relay, Cooling Fan, No.2
85942	85942-30020	Relay, Headlamp Cleaner Control
85942	85942-58010	Relay, Cleaner Control
90119	90119-C0073	New Genuine Part
91631	91631-B0616	BOLT WWASHER
8271533690	82715-33690	Bracket,wiring Harness Clamp
9011908665	90119-08665	BOLT
9017906128	90179-06128	NUT

OEM	Part name	Category
28300-21020	Relay Assy, Starter	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
28300-28010	Relay Assy, Starter	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82616-58010	Puller, Fuse	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82620-07050	Block Assy, Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82620-33030	Block Assy, Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82660-33010	Block Assy, Relay	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82661-07020	Cover, Relay Block, No.1	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82662-06080	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82662-06081	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82662-33140	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82662-33160	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82663-33070	Cover, Relay Block, Lower	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82715-33690	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82720-06070	Block Assy, Engine Room Junction	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82720-33110	Block Assy, Engine Room Junction	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82720-33120	Block Assy, Engine Room Junction	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82740-33020	Block Assy, Engine Room Relay	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82742-33020	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
82824-41010	Pin, Short	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
85942-30020	Relay, Headlamp Cleaner Control	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
85942-58010	Relay, Cleaner Control	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90080-87009	Relay, Cooling Fan, No.2	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90119-08665	BOLT	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90119-C0073	New Genuine Part	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90179-06128	NUT	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09008	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09009	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09010	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09011	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09012	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09013	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09020	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09021	Fusible Link	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09022	Instrument Panel Fuse	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09023	Instrument Panel Fuse	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09024	Instrument Panel Fuse	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90982-09025	Instrument Panel Fuse	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-02027	Relay	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-04010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-T2001	Relay, Power Outlet Socket - DEFOGGER	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-T2003	Relay Assy (For Heater Blower Motor) - HEATER, NO.1	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-T2005	Relay, Water Pump	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-T4001	Relay Assy, Starter	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
90987-T4002	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
91631-B0616	BOLT WWASHER	Switch & Relay & Computer ([05.2006 - ] ENGINE ROOM (0605- )ACV4#)
