Search › Model › ACV41

ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

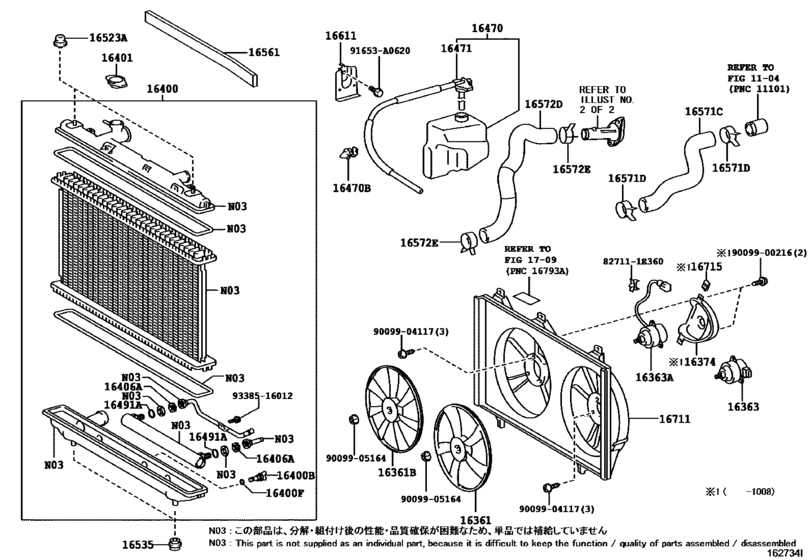

Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE) 36

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16361	16361-0H190	Fan
16361	16361-0H200	Fan, No.2
16363	16363-02120	Motor, Cooling Fan
16363	16363-23010	Motor, Cooling Fan
16363	16363-0H170	Motor, Cooling Fan, No.2
16363	16363-28230	Motor, Cooling Fan, No.2
16374	16366-28130	Insulator, Cooling Fan Motor
16400	16400-0H290	Radiator Assy
16400	16400-0H291	Radiator Assy
16400	16400-0H370	Radiator Assy
16400	16417-0H290	Cock Sub-Assy, Radiator Drain - RADIATOR DRAIN COCK
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-0Y060	Cap Sub-Assy, Radiator
16401	16401-28430	Cap Sub-Assy, Radiator
16401	16401-31480	Cap Sub-Assy, Radiator
16406	16406-62060	Support(For Oil Cooler)
16470	16470-0H090	Tank Assy, Radiator Reserve
16470	90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)
16471	16405-0H080	Cap Sub-Assy, Reserve Tank
16491	16492-50020	Ring, O(For Atm Oil Cooler)
16523	16523-0H040	Cushion, Radiator Support
16535	16535-0H040	Support, Radiator, Lower
16561	16561-0H040	Seal, Radiator To Support, No.1
16571	16571-0H160	Hose, Radiator, No.1
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-C0009	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0H140	Hose, Radiator, No.2
16611	16611-0H030	Bracket, Radiator Reserve Tank
16711	16711-0H150	Shroud, Fan
16715	88688-18030	Bracket, Fan Shroud
91653	91653-A0620	New Genuine Part
9009900216	90099-00216	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9338516012	93385-16012	New Genuine Part

OEM	Part name	Category
16361-0H190	Fan	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16361-0H200	Fan, No.2	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16363-02120	Motor, Cooling Fan	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16363-0H170	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16363-23010	Motor, Cooling Fan	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16363-28230	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16366-28130	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16400-0H290	Radiator Assy	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16400-0H291	Radiator Assy	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16400-0H370	Radiator Assy	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16401-0Y060	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16401-28430	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16405-0H080	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16417-0H290	Cock Sub-Assy, Radiator Drain - RADIATOR DRAIN COCK	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16470-0H090	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16492-50020	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16523-0H040	Cushion, Radiator Support	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16535-0H040	Support, Radiator, Lower	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16561-0H040	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16571-0H160	Hose, Radiator, No.1	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16572-0H140	Hose, Radiator, No.2	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16611-0H030	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
16711-0H150	Shroud, Fan	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
88688-18030	Bracket, Fan Shroud	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90099-00216	New Genuine Part	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90099-05164	Nut	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90466-C0009	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
91653-A0620	New Genuine Part	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
93385-16012	New Genuine Part	Radiator & Water Outlet ([05.2006 - 12.2007] (0605-0712) ; (0812-1301)1AZFE,2AZFE)
