Search › Model › ACV41

ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

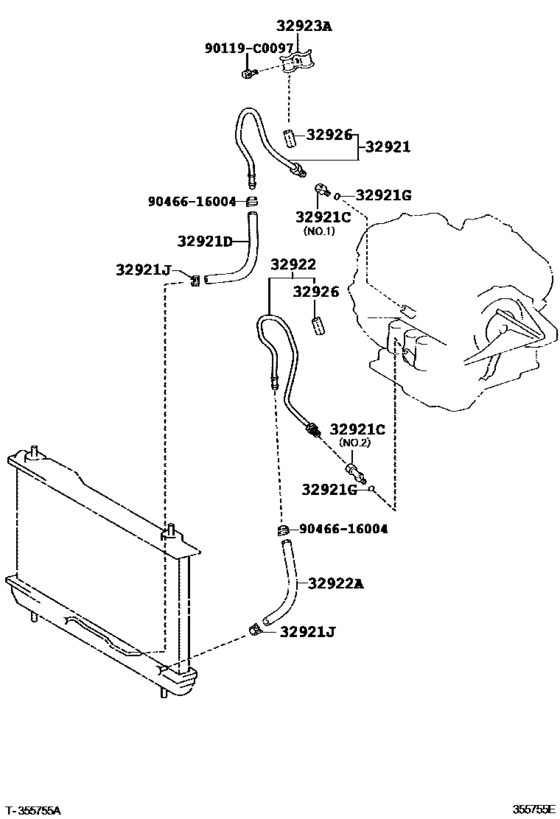

Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#) 24

#	OEM	Part name
32921	32921-06220	Tube, Oil Cooler Inlet, No.1
32921	90404-16031	Union(For Transaxle Housing)
32921	90407-16010	Union(For Oil Cooler Tube)
32921	32943-06150	Hose(For Oil Cooler Inlet)
32921	32943-33260	Hose(For Oil Cooler Inlet)
32921	90445-17117	Hose(For Oil Cooler Inlet)
32921	90301-10018	Ring, O(For Oil Cooler Tube Union)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90466-16004	Clip(For Ventilation Hose No.2)
32921	90466-C0024	Clip(For Oil Cooler Hose)
32921	90467-16022	Clip(For Water Inlet Hose)
32921	32921-06190	Tube, Oil Cooler Inlet, No.1
32921	32943-06160	Hose(For Oil Cooler Inlet)
32922	32922-06200	Tube, Oil Cooler Outlet, No.1
32922	90445-17128	Hose(For Oil Cooler Inlet)
32922	90445-C0001	Hose(For Oil Cooler Outlet)
32922	32922-06170	Tube, Oil Cooler Outlet, No.1
32922	90445-T0016	Hose(For Oil Cooler Outlet)
32923	90462-12074	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
90119	90119-C0097	New Genuine Part
90119	90119-T0092	New Genuine Part
90466	90466-T0016	Clip(For Oil Cooler Hose)
91611	91611-G0612	Bolt

OEM	Part name	Category
32921-06190	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32921-06220	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32922-06170	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32922-06200	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32943-06150	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32943-06160	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
32943-33260	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90119-C0097	New Genuine Part	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90119-T0092	New Genuine Part	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90301-10018	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90404-16031	Union(For Transaxle Housing)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90445-17117	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90445-17128	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90445-C0001	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90445-T0016	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90462-12074	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90466-C0024	Clip(For Oil Cooler Hose)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90466-T0016	Clip(For Oil Cooler Hose)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([05.2006 - ] U241E,U250E (0605- )ACV4#)
