ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

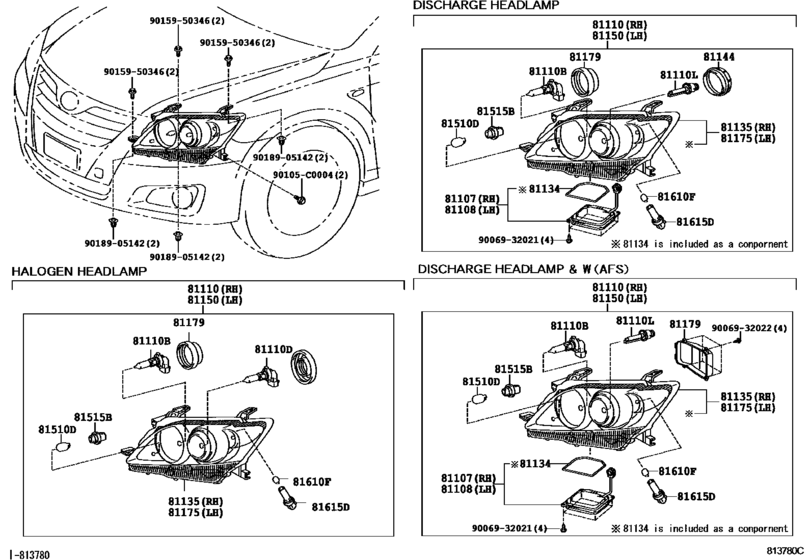

Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41) 55

#	OEM	Part name
81107	81107-06400	Computer Sub-Assy, Headlamp Light Control, Rh
81110	81110-06390	Headlamp Assy, Rh
81110	81110-06393	Headlamp Assy, Rh
81110	81110-06391	Headlamp Assy, Rh
81110	81110-06392	Headlamp Assy, Rh
81110	81110-06400	Headlamp Assy, Rh
81110	81110-06403	Headlamp Assy, Rh
81110	81110-06401	Headlamp Assy, Rh
81110	81110-06402	Headlamp Assy, Rh
81110	81110-06620	Headlamp Assy, Rh
81110	81110-06630	Headlamp Assy, Rh
81110	81110-YL010	Headlamp Assy, Rh
81110	90080-81041	Bulb(For Headlamp, No.1)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13075	Bulb(For Headlamp, No.1)
81110	90981-20013	Bulb, Discharge Headlamp
81110	90981-20024	Bulb, Discharge Headlamp
81110	90981-20021	Bulb, Discharge Headlamp
81134	90075-68007	Gasket, Headlamp
81135	81130-06390	Unit Assy, Headlamp, Rh
81135	81130-06620	Unit Assy, Headlamp, Rh
81135	81130-YL010	Unit Assy, Headlamp, Rh
81135	81145-06400	Unit Assy, Headlamp, Rh
81135	81145-06630	Unit Assy, Headlamp, Rh
81144	81136-06400	Cover, Headlamp, No.1
81144	81136-06630	Cover, Headlamp, No.1
81150	81150-06390	Headlamp Assy, Lh
81150	81150-06393	Headlamp Assy, Lh
81150	81150-06391	Headlamp Assy, Lh
81150	81150-06392	Headlamp Assy, Lh
81150	81150-06400	Headlamp Assy, Lh
81150	81150-06403	Headlamp Assy, Lh
81150	81150-06401	Headlamp Assy, Lh
81150	81150-06402	Headlamp Assy, Lh
81150	81150-06620	Headlamp Assy, Lh
81150	81150-06630	Headlamp Assy, Lh
81150	81150-YL010	Headlamp Assy, Lh
81175	81170-06390	Unit Assy, Headlamp, Lh
81175	81170-06620	Unit Assy, Headlamp, Lh
81175	81170-YL010	Unit Assy, Headlamp, Lh
81175	81185-06400	Unit Assy, Headlamp, Lh
81175	81185-06630	Unit Assy, Headlamp, Lh
81179	81135-06390	Cover, Headlamp Socket
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90069-81069	Socket, Front Turn Signal Lamp
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90069-81070	Socket, Clearance Lamp
81615	90075-60077	Clearance Lamp Socket
90105	90105-C0004	New Genuine Part
9006932021	90069-32021	New Genuine Part
9006932022	90069-32022	New Genuine Part
9015950346	90159-50346	SCREW
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81107-06400	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06390	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06391	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06392	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06393	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06400	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06401	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06402	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06403	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06620	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-06630	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81110-YL010	Headlamp Assy, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81130-06390	Unit Assy, Headlamp, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81130-06620	Unit Assy, Headlamp, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81130-YL010	Unit Assy, Headlamp, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81135-06390	Cover, Headlamp Socket	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81136-06400	Cover, Headlamp, No.1	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81136-06630	Cover, Headlamp, No.1	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81145-06400	Unit Assy, Headlamp, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81145-06630	Unit Assy, Headlamp, Rh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06390	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06391	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06392	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06393	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06400	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06401	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06402	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06403	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06620	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-06630	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81150-YL010	Headlamp Assy, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81170-06390	Unit Assy, Headlamp, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81170-06620	Unit Assy, Headlamp, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81170-YL010	Unit Assy, Headlamp, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81185-06400	Unit Assy, Headlamp, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
81185-06630	Unit Assy, Headlamp, Lh	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90069-32021	New Genuine Part	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90069-32022	New Genuine Part	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90069-81069	Socket, Front Turn Signal Lamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90069-81070	Socket, Clearance Lamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90075-60028	Socket, Headlamp, Bulb	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90075-60077	Clearance Lamp Socket	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90075-68007	Gasket, Headlamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90080-81041	Bulb(For Headlamp, No.1)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90105-C0004	New Genuine Part	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90159-50346	SCREW	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90189-05142	GROMMET, SCREW	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-13075	Bulb(For Headlamp, No.1)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-20013	Bulb, Discharge Headlamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-20021	Bulb, Discharge Headlamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
90981-20024	Bulb, Discharge Headlamp	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
99132-12050	Bulb (12V 5W)	Headlamp ([05.2006 - 03.2009] (0605-0902)ACV40 ; (0605-0903)ACV41)
