ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

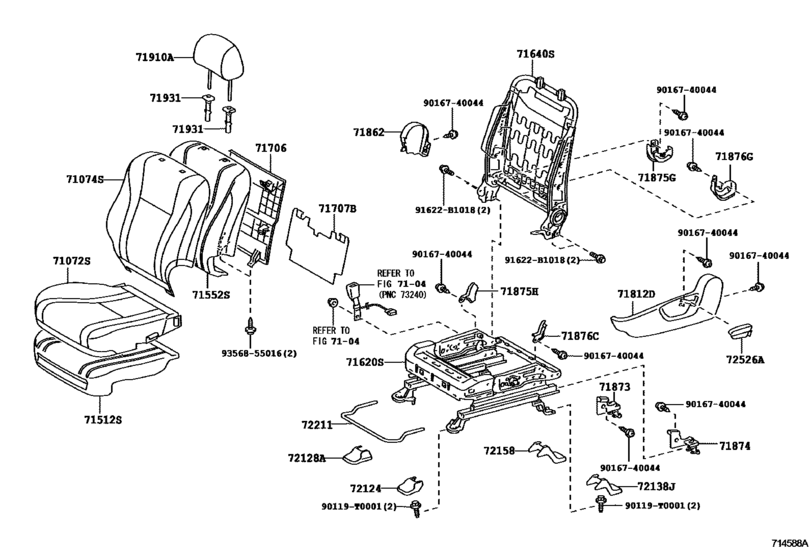

Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q) 48

#	OEM	Part name
71072	71072-06620-E0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-06800-E0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-06A70-E0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-06570-E0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-06590-E1	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-06800-E0	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-06A90-E0	Cover, Front Seat Back, Lh(For Separate Type)
71512	71502-06070	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71502-06080	Pad, Front Seat Cushion, Lh (For Separate Type)
71552	71552-06110	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-06160	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-06250	Pad, Front Seat Back, Lh(For Separate Type)
71620	71620-06060	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620	71620-06170	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71640	71640-06140	Spring Assy, Front Seat Back, Lh(For Separate Type)
71640	71640-06170	Spring Assy, Front Seat Back, Lh(For Separate Type)
71706	71705-06060-E0	Board Sub-Assy, Front Seat Back, Rh
71707	71707-06030-E0	Cover Sub-Assy, Front Seat Back Board
71812	71812-06110-E0	Shield, Front Seat Cushion, Lh
71812	71812-06130-E0	Shield, Front Seat Cushion, Lh
71862	71862-06070-E0	Shield, Front Seat Cushion, Inner Lh
71862	71862-06080-E0	Shield, Front Seat Cushion, Inner Lh
71873	71873-06250	Shield, Front Seat Cushion, Lower Rh
71874	71874-06260	Shield, Front Seat Cushion, Lower Lh
71875	71875-06370	Cover, Reclining Adjuster Inside, Rh
71875	71875-06070-E0	Cover, Reclining Adjuster Inside, Rh
71875	71875-06100-E0	Cover, Reclining Adjuster Inside, Rh
71876	71876-06320-E0	Cover, Reclining Adjuster Inside, Lh
71876	71876-06330-E0	Cover, Reclining Adjuster Inside, Lh
71876	71876-06080	Cover, Reclining Adjuster Inside, Lh - RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876	71876-06400	Cover, Reclining Adjuster Inside, Lh
71910	71910-06300-E2	Headrest Assy, Front Seat
71910	71910-06310-E0	Headrest Assy, Front Seat
71910	71910-06310-E2	Headrest Assy, Front Seat
71931	71930-02370-E0	Support, Front Seat Headrest
71931	71930-47010-E3	Support, Front Seat Headrest
71931	71931-02130-E0	Support, Front Seat Headrest
71931	71931-47010-E4	Support, Front Seat Headrest
72124	72124-06020-E0	Cover, Seat Track Bracket, Outer Front Lh
72128	72128-06020-E0	Cover, Seat Track Bracket, Inner Front Lh
72138	72138-06040-E0	Cover, Front Seat Track, Lh Rear Outer
72158	72158-06050-E0	Cover, Seat Track Bracket, Inner Lh
72211	72211-06020	Handle, Seat Track Adjusting
72526	72526-06030-E0	Handle, Reclining Adjuster Release, Lh
90119	90119-T0001	BOLTWWSH
91622	91622-B1018	BOLT WWASHER
9016740044	90167-40044	BOLT
9356855016	93568-55016	Screw

OEM	Part name	Category
71072-06620-E0	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71072-06800-E0	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71072-06A70-E0	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71074-06570-E0	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71074-06590-E1	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71074-06800-E0	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71074-06A90-E0	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71502-06070	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71502-06080	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71552-06110	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71552-06160	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71552-06250	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71620-06060	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71620-06170	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71640-06140	Spring Assy, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71640-06170	Spring Assy, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71705-06060-E0	Board Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71707-06030-E0	Cover Sub-Assy, Front Seat Back Board	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71812-06110-E0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71812-06130-E0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71862-06070-E0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71862-06080-E0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71873-06250	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71874-06260	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06070-E0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06100-E0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06370	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06080	Cover, Reclining Adjuster Inside, Lh - RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06320-E0	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06330-E0	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06400	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06300-E2	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06310-E0	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06310-E2	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71930-02370-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71930-47010-E3	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71931-02130-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71931-47010-E4	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72124-06020-E0	Cover, Seat Track Bracket, Outer Front Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72128-06020-E0	Cover, Seat Track Bracket, Inner Front Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72138-06040-E0	Cover, Front Seat Track, Lh Rear Outer	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72158-06050-E0	Cover, Seat Track Bracket, Inner Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72211-06020	Handle, Seat Track Adjusting	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72526-06030-E0	Handle, Reclining Adjuster Release, Lh	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
90119-T0001	BOLTWWSH	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
90167-40044	BOLT	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
91622-B1018	BOLT WWASHER	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
93568-55016	Screw	Front Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
