Search › Model › ACV41

ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

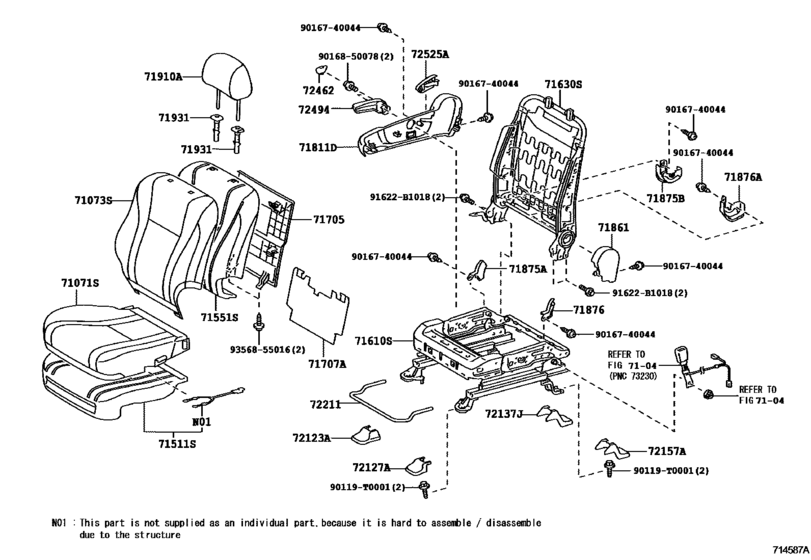

Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q) 48

#	OEM	Part name
71071	71071-06600-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-06780-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-06A00-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-06720-E1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-06730-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-06A60-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-06C20-E0	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-06300	Pad, Front Seat Cushion, Rh(For Separate Type)
71511	71511-06310	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-06170	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-06320	Pad, Front Seat Back, Rh(For Separate Type)
71610	71610-06060	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610	71610-06160	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-06200	Spring Assy, Front Seat Back, Rh(For Separate Type)
71630	71630-06240	Spring Assy, Front Seat Back, Rh(For Separate Type)
71705	71705-06060-E0	Board Sub-Assy, Front Seat Back, Rh
71707	71707-06030-E0	Cover Sub-Assy, Front Seat Back Board
71811	71811-06100-E0	Shield, Front Seat Cushion, Rh
71811	71811-06120-E0	Shield, Front Seat Cushion, Rh
71861	71861-06060-E0	Shield, Front Seat Cushion, Inner Rh
71861	71861-06070-E0	Shield, Front Seat Cushion, Inner Rh
71875	71875-06070-E0	Cover, Reclining Adjuster Inside, Rh
71875	71875-06100-E0	Cover, Reclining Adjuster Inside, Rh
71875	71875-06310	Cover, Reclining Adjuster Inside, Rh
71875	71875-06370	Cover, Reclining Adjuster Inside, Rh
71876	71876-06320-E0	Cover, Reclining Adjuster Inside, Lh
71876	71876-06330-E0	Cover, Reclining Adjuster Inside, Lh
71876	71876-06400	Cover, Reclining Adjuster Inside, Lh
71910	71910-06300-E2	Headrest Assy, Front Seat
71910	71910-06310-E0	Headrest Assy, Front Seat
71910	71910-06310-E2	Headrest Assy, Front Seat
71931	71930-02370-E0	Support, Front Seat Headrest
71931	71930-47010-E3	Support, Front Seat Headrest
71931	71931-02130-E0	Support, Front Seat Headrest
71931	71931-47010-E4	Support, Front Seat Headrest
72123	72123-06020-E0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-06020-E0	Cover, Seat Track Bracket, Inner Front Rh
72137	72137-06050-E0	Cover, Front Seat Track, Rh Rear Outer
72157	72157-06050-E0	Cover, Seat Track Bracket, Inner Rh
72211	72211-06020	Handle, Seat Track Adjusting
72462	72462-06010-E0	Cover, Vertical Adjuster Rh
72494	72494-06020-E0	Handle, Vertical Adjusting, Rh
72525	72525-06060-E0	Handle, Reclining Adjuster Release, Rh
90119	90119-T0001	BOLTWWSH
91622	91622-B1018	BOLT WWASHER
9016740044	90167-40044	BOLT
9016850078	90168-50078	SCREW TAPPING
9356855016	93568-55016	Screw

OEM	Part name	Category
71071-06600-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71071-06780-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71071-06A00-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71073-06720-E1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71073-06730-E0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71073-06A60-E0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71073-06C20-E0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71511-06300	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71511-06310	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71551-06170	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71551-06320	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71610-06060	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71610-06160	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71630-06200	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71630-06240	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71705-06060-E0	Board Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71707-06030-E0	Cover Sub-Assy, Front Seat Back Board	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71811-06100-E0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71811-06120-E0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71861-06060-E0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71861-06070-E0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06070-E0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06100-E0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06310	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71875-06370	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06320-E0	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06330-E0	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71876-06400	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06300-E2	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06310-E0	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71910-06310-E2	Headrest Assy, Front Seat	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71930-02370-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71930-47010-E3	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71931-02130-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
71931-47010-E4	Support, Front Seat Headrest	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72123-06020-E0	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72127-06020-E0	Cover, Seat Track Bracket, Inner Front Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72137-06050-E0	Cover, Front Seat Track, Rh Rear Outer	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72157-06050-E0	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72211-06020	Handle, Seat Track Adjusting	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72462-06010-E0	Cover, Vertical Adjuster Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72494-06020-E0	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
72525-06060-E0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
90119-T0001	BOLTWWSH	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
90167-40044	BOLT	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
90168-50078	SCREW TAPPING	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
91622-B1018	BOLT WWASHER	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
93568-55016	Screw	Front Seat & Seat Track ([08.2006 - ] DRIVER SEAT (0608- )24G..IDN ; (0608- )24E,24V..TH ; ( 0608- )RHD..20,20E,35Q)
