Search › Model › ACV41

ACV41

Toyota CAMRY-VISTA-AURION · 2006 · 6,350 parts · 302 categories

6,350 items

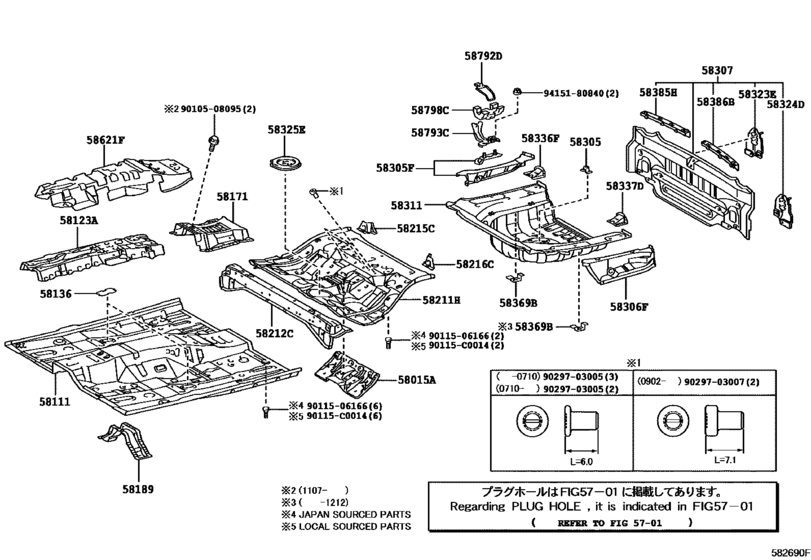

Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#) 46

#	OEM	Part name
58015	58015-06090	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58111	58111-06120	Pan, Front Floor
58111	58111-06121	Pan, Front Floor
58123	58013-06090	Support, Shift & Select Lever
58123	58013-06092	Support, Shift & Select Lever
58123	58013-06091	Support, Shift & Select Lever
58136	58136-06060	Cover, Front Floor Hole
58171	58171-06080	Reinforcement, Parking Brake Base
58171	58171-06082	Reinforcement, Parking Brake Base
58171	90105-08095	BOLT
58171	58171-06081	Reinforcement, Parking Brake Base
58189	58189-06080	Reinforcement, Exhaust Pipe Clamp Bracket
58189	58189-06081	Reinforcement, Exhaust Pipe Clamp Bracket
58211	58211-06140	Pan, Center Floor
58212	58212-06060	Pan, Center Floor, Front
58215	58215-06050	Reinforcement, Center Floor Panel, No.2 Rh
58216	58216-06050	Reinforcement, Center Floor Panel, No.2 Lh
58305	58351-06020	Bracket Sub-Assy, Spare Wheel Clamp
58305	58305-06140	Panel Sub-Assy, Rear Floor Side, Rh
58305	58305-33070	Panel Sub-Assy, Rear Floor Side, Rh
58305	58305-06090	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-06070	Panel Sub-Assy, Rear Floor Side, Lh
58306	58306-33030	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-06140	Panel Sub-Assy, Body Lower Back
58311	58311-06100	Pan, Rear Floor
58311	58311-06141	Pan, Rear Floor
58311	90333-30002	Cover, Front Floor Hole
58311	58311-06140	Pan, Rear Floor
58323	58323-06060	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-06060	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-06040	Cover, Rear Floor Service Hole
58336	58336-06060	Reinforcement, Rear Floor Pan, Rh
58337	58337-06050	Reinforcement, Rear Floor Pan, Lh
58369	58369-06030	Bracket, Fuel Tube, No.3
58385	58385-06070	Bracket, Rear Bumper Cover, No.1
58386	58386-06050	Bracket, Rear Bumper Cover, No.2
58621	58621-06120	Silencer, Center Console, No.1
58621	58621-06121	Silencer, Center Console, No.1
58792	58792-33010	Support, Jack
58793	58793-06050	Bracket, Jack Carrier, No.1
58798	58798-06050	Cushion, Jack Carrier
90115	90115-C0014	Bolt, Weld(For Front Floor Pan)
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9029703005	90297-03005	New Genuine Part
9029703007	90297-03007	Retainer, Rear Heater Mounting
9415180840	94151-80840	NUT, FLANGE

OEM	Part name	Category
58013-06090	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58013-06091	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58013-06092	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58015-06090	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58111-06120	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58111-06121	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58136-06060	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58171-06080	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58171-06081	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58171-06082	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58189-06080	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58189-06081	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58211-06140	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58212-06060	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58215-06050	Reinforcement, Center Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58216-06050	Reinforcement, Center Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58305-06090	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58305-06140	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58305-33070	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58306-06070	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58306-33030	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58307-06140	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58311-06100	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58311-06140	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58311-06141	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58323-06060	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58324-06060	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58325-06040	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58336-06060	Reinforcement, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58337-06050	Reinforcement, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58351-06020	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58369-06030	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58385-06070	Bracket, Rear Bumper Cover, No.1	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58386-06050	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58621-06120	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58621-06121	Silencer, Center Console, No.1	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58792-33010	Support, Jack	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58793-06050	Bracket, Jack Carrier, No.1	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
58798-06050	Cushion, Jack Carrier	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90105-08095	BOLT	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90115-C0014	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90297-03005	New Genuine Part	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
90333-30002	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
94151-80840	NUT, FLANGE	Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )ACV4#)
