Search › Model › ACV41
ACV41

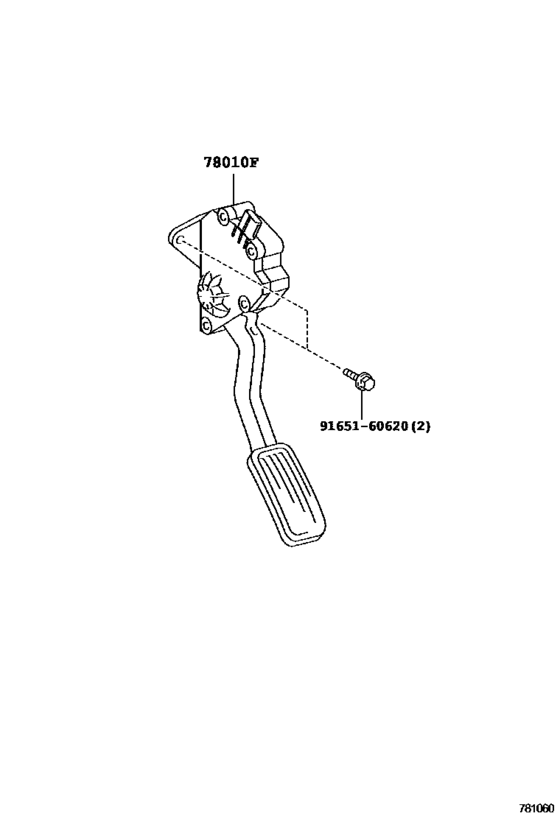

Accelerator Link ([05.2006 - ] (0605- )) 10
| # | OEM | Part name |
|---|---|---|
| 78010 | 78110-06020 | Pedal Assy, Accelerator |
| 78010 | 78110-06022 | Pedal Assy, Accelerator |
| 78010 | 78110-06021 | Pedal Assy, Accelerator |
| 78110 | 78110-06030 | Sensor Assy, Accelerator Pedal |
| 78110 | 78110-06032 | Sensor Assy, Accelerator Pedal |
| 78110 | 78110-06031 | Sensor Assy, Accelerator Pedal |
| 78110 | 78110-33010 | Pedal Assy, Accelerator |
| 78110 | 78110-33012 | Pedal Assy, Accelerator |
| 78110 | 78110-33011 | Pedal Assy, Accelerator |
| 9165160620 | 91651-60620 | BOLTWWASHER |
| OEM | Part name | Category |
|---|---|---|
| 78110-06020 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-06021 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-06022 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-06030 | Sensor Assy, Accelerator Pedal | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-06031 | Sensor Assy, Accelerator Pedal | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-06032 | Sensor Assy, Accelerator Pedal | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-33010 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-33011 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 78110-33012 | Pedal Assy, Accelerator | Accelerator Link ([05.2006 - ] (0605- )) |
| 91651-60620 | BOLTWWASHER | Accelerator Link ([05.2006 - ] (0605- )) |
