Search › Model › ACV36
ACV36

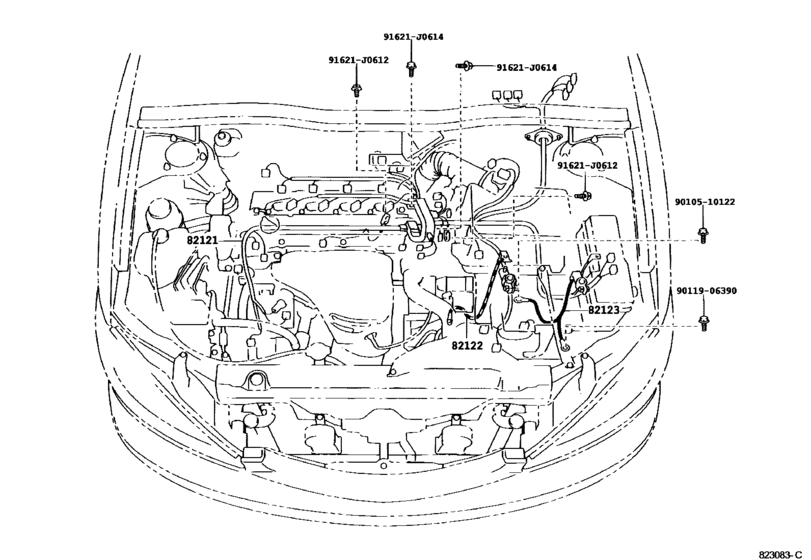

Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) 9
| # | OEM | Part name |
|---|---|---|
| 82121 | 82121-YC280 | Wire, Engine |
| 82121 | 82121-YC330 | Wire, Engine |
| 82121 | 82121-YC331 | Wire, Engine |
| 82122 | 82122-YC040 | Wire, Engine, No.2 |
| 82123 | 82123-YC030 | Wire, Engine, No.3 |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 91621 | 91621-J0614 | BOLT W-WASHER |
| 9010510122 | 90105-10122 | New Genuine Part |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 82121-YC280 | Wire, Engine | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 82121-YC330 | Wire, Engine | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 82121-YC331 | Wire, Engine | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 82122-YC040 | Wire, Engine, No.2 | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 82123-YC030 | Wire, Engine, No.3 | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 90105-10122 | New Genuine Part | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 90119-06390 | BOLT WWASHER | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 91621-J0612 | BOLT W-WASHER | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
| 91621-J0614 | BOLT W-WASHER | Wiring & Clamp ([08.2002 - ] ENGINE (0208- )ACV36) |
