Search › Model › ACV36

ACV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,178 parts · 195 categories

← Back to categories

4,178 items

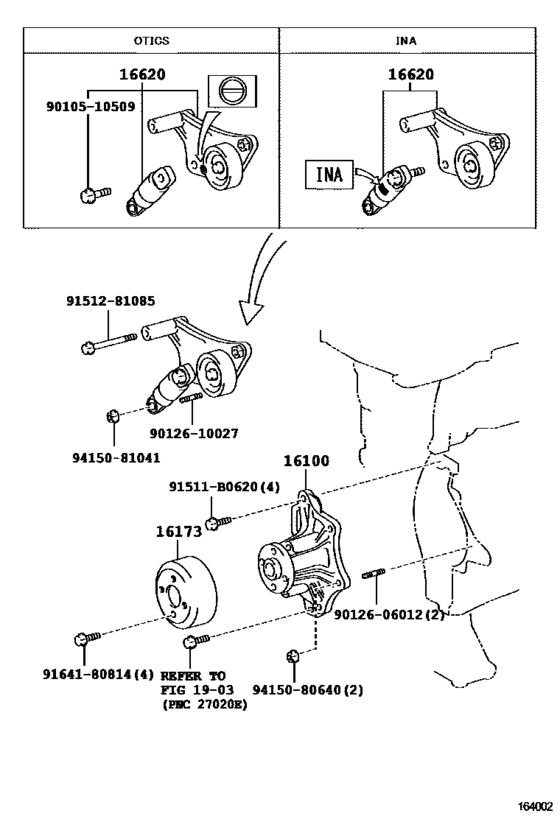

Water Pump ([08.2002 - ] (0208- )2AZFE) 14

#	OEM	Part name
16100	16100-0H030	Pump Assy, Engine Water
16173	16173-0H030	Pulley, Water Pump
16620	16620-0W110	Tensioner Assy, V-Ribbed Belt
16620	16620-28090	Tensioner Assy, V-Ribbed Belt
16620	16620-28011	Tensioner Assy, V-Ribbed Belt
16620	16620-28070	Tensioner Assy, V-Ribbed Belt
91511	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9010510509	90105-10509	New Genuine Part
9012606012	90126-06012	STUD, HEX LOBULAR
9012610027	90126-10027	STUD HEX LOBULAR
9151281085	91512-81085	Bolt(For Alternator)
9164180814	91641-80814	BOLTWWASHER
9415080640	94150-80640	NUT FLANGE
9415081041	94150-81041	NUT FLANGE

OEM	Part name	Category
16100-0H030	Pump Assy, Engine Water	Water Pump ([08.2002 - ] (0208- )2AZFE)
16173-0H030	Pulley, Water Pump	Water Pump ([08.2002 - ] (0208- )2AZFE)
16620-0W110	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.2002 - ] (0208- )2AZFE)
16620-28011	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.2002 - ] (0208- )2AZFE)
16620-28070	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.2002 - ] (0208- )2AZFE)
16620-28090	Tensioner Assy, V-Ribbed Belt	Water Pump ([08.2002 - ] (0208- )2AZFE)
90105-10509	New Genuine Part	Water Pump ([08.2002 - ] (0208- )2AZFE)
90126-06012	STUD, HEX LOBULAR	Water Pump ([08.2002 - ] (0208- )2AZFE)
90126-10027	STUD HEX LOBULAR	Water Pump ([08.2002 - ] (0208- )2AZFE)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Water Pump ([08.2002 - ] (0208- )2AZFE)
91512-81085	Bolt(For Alternator)	Water Pump ([08.2002 - ] (0208- )2AZFE)
91641-80814	BOLTWWASHER	Water Pump ([08.2002 - ] (0208- )2AZFE)
94150-80640	NUT FLANGE	Water Pump ([08.2002 - ] (0208- )2AZFE)
94150-81041	NUT FLANGE	Water Pump ([08.2002 - ] (0208- )2AZFE)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 195
Collected: 2026-08-02
