Search › Model › ACV36
ACV36

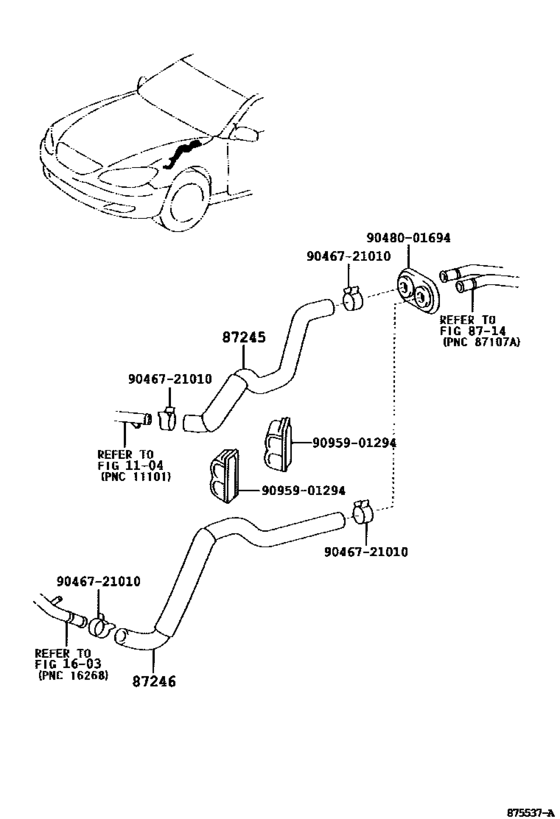

Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) 7
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-YC170 | Hose, Heater Water, Inlet |
| 87245 | 87245-YC250 | Hose, Heater Water, Inlet |
| 87246 | 87245-YC180 | Hose, Heater Water, Outlet |
| 87246 | 87245-YC260 | Hose, Heater Water, Outlet |
| 9046721010 | 90467-21010 | Clip(For Ventilation Hose No.2) |
| 9048001694 | 90480-01694 | GROMMET |
| 9095901294 | 90959-01294 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 87245-YC170 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 87245-YC180 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 87245-YC250 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 87245-YC260 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 90467-21010 | Clip(For Ventilation Hose No.2) | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 90480-01694 | GROMMET | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
| 90959-01294 | New Genuine Part | Heating & Air Conditioning - Water Piping ([08.2002 - ] (0208- )ACV36..ARL) |
