Search › Model › ACV36

ACV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,178 parts · 195 categories
ACV36 ×

← Back to categories

4,178 items

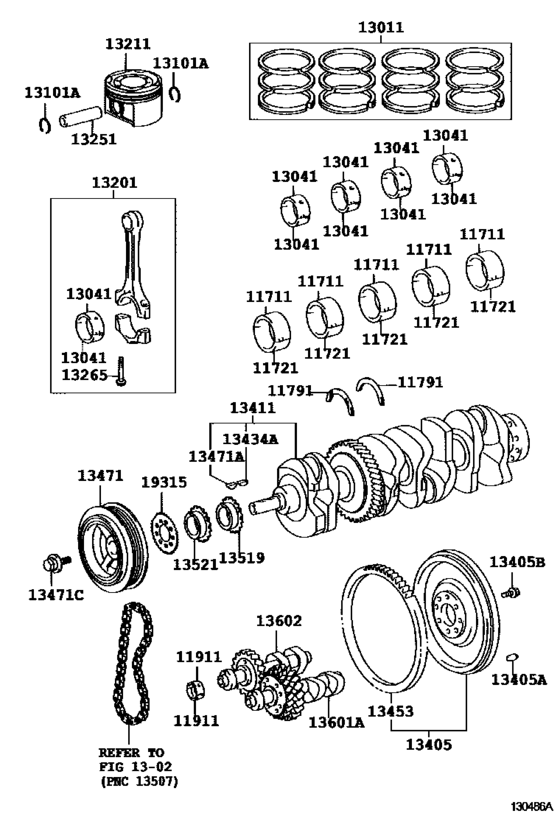

Crankshaft & Piston ([08.2002 - ] (0208- )2AZFE) 77
#OEMPart name
11711 11711-0H020-01 Bearing, Crankshaft
11711 11711-0H020-02 Bearing, Crankshaft
11711 11711-0H020-03 Bearing, Crankshaft
11711 11711-0H020-04 Bearing, Crankshaft
11721 11721-0H020-01 Bearing, Crankshaft, No.2
11721 11721-0H020-02 Bearing, Crankshaft, No.2
11721 11721-0H020-03 Bearing, Crankshaft, No.2
11721 11721-0H020-04 Bearing, Crankshaft, No.2
11791 11791-0H020 Washer, Crankshaft Thrust, Upper
11791 11791-0H021 Washer, Crankshaft Thrust, Upper
11911 11911-0H010-01 Bearing, Balanceshaft, No.1
11911 11911-28011-01 Bearing, Balanceshaft, No.1
11911 11911-0H010-02 Bearing, Balanceshaft, No.1
11911 11911-28011-02 Bearing, Balanceshaft, No.1
11911 11911-0H010-03 Bearing, Balanceshaft, No.1
11911 11911-28010-01 Bearing, Balanceshaft, No.1
11911 11911-28010-02 Bearing, Balanceshaft, No.1
11911 11911-28010-03 Bearing, Balanceshaft, No.1
11911 11911-28011-03 Bearing, Balanceshaft, No.1
13011 13011-0H020 Ring Set, Piston
13011 13011-28151 Ring Set, Piston
13041 13281-0H020-01 Bearing, Connecting Rod
13041 13281-0H020-02 Bearing, Connecting Rod
13041 13281-28011-02 Bearing, Connecting Rod
13041 13281-0H020-03 Bearing, Connecting Rod
13041 13281-28010-01 Bearing, Connecting Rod
13041 13281-28011-01 Bearing, Connecting Rod
13041 13281-28010-02 Bearing, Connecting Rod
13041 13281-28010-03 Bearing, Connecting Rod
13041 13281-28011-03 Bearing, Connecting Rod
13101 90520-22025 Ring, Hole Snap(For Piston Pin)
13201 13201-09170-A0 Rod Sub-Assy, Connecting
13201 13201-29686-A0 Rod Sub-Assy, Connecting
13201 13201-09170-B0 Rod Sub-Assy, Connecting
13201 13201-29686-B0 Rod Sub-Assy, Connecting
13201 13201-09170-C0 Rod Sub-Assy, Connecting
13201 13201-29686-C0 Rod Sub-Assy, Connecting
13201 13201-29125-A0 Rod Sub-Assy, Connecting
13201 13201-29125-B0 Rod Sub-Assy, Connecting
13201 13201-29125-C0 Rod Sub-Assy, Connecting
13211 13211-0H030-A0 Piston
13211 13211-28031-A0 Piston
13211 13211-0H030-B0 Piston
13211 13211-0H061-B0 Piston
13211 13211-0H030-C0 Piston
13211 13211-0H061-C0 Piston
13211 13211-28030-A0 Piston
13211 13211-28030-B0 Piston
13211 13211-28031-B0 Piston
13211 13211-28030-C0 Piston
13211 13211-28031-C0 Piston
13251 13251-28010-A0 Pin, Piston
13251 13251-28020-A0 Pin, Piston
13251 13251-28010-B0 Pin, Piston
13251 13251-28020-B0 Pin, Piston
13251 13251-28010-C0 Pin, Piston
13251 13251-28020-C0 Pin, Piston
13265 13265-28010 Bolt, Connecting Rod
13265 13265-28020 BOLT CONNECTING ROD
13411 13401-28010 Crankshaft
13434 95161-30416 Pin, Straight(For Crankshaft)
13471 13470-0H020 Pulley, Crankshaft
13471 13470-28020 Pulley, Crankshaft
13471 90119-14106 Bolt(For Crankshaft Pulley Set)
13519 13519-0H040 Gear, Oil Pump Drive
13519 13519-28010 Gear, Oil Pump Drive
13521 13521-0H040 Gear Or Sprocket, Crankshaft Timing
13521 13521-28010 Gear Or Sprocket, Crankshaft Timing
13521 13521-28030 Gear Or Sprocket, Crankshaft Timing
13601 13601-28010 Balanceshaft Sub-Assy, No.1
13601 13601-28031 Balanceshaft Sub-Assy, No.1
13601 13601-28011 Balanceshaft Sub-Assy, No.1
13601 13601-28030 Balanceshaft Sub-Assy, No.1
13602 13602-28010 Balanceshaft Sub-Assy, No.2
13602 13602-28030 Balanceshaft Sub-Assy, No.2
13602 13602-28011 Balanceshaft Sub-Assy, No.2
19315 19315-28010 Plate, Crank Angle Sensor, No.1
