Search › Model › ACV36
ACV36

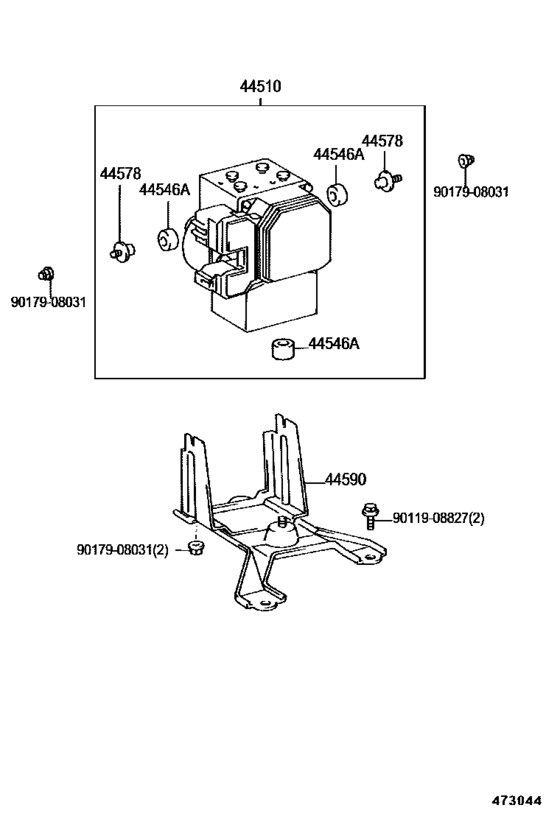

Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) 6
| # | OEM | Part name |
|---|---|---|
| 44510 | 44050-06030 | Actuator Assy, Brake |
| 44546 | 44546-05020 | Cushion, Brake Actuator Bolt |
| 44578 | 44578-05020 | Bolt, Brake Actuator Cushion |
| 44590 | 44590-33050 | Bracket Assy, Brake Actuator |
| 9011908827 | 90119-08827 | New Genuine Part |
| 9017908031 | 90179-08031 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 44050-06030 | Actuator Assy, Brake | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
| 44546-05020 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
| 44578-05020 | Bolt, Brake Actuator Cushion | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
| 44590-33050 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
| 90119-08827 | New Genuine Part | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
| 90179-08031 | New Genuine Part | Brake Tube & Clamp ([08.2002 - ] W(ABS) (0208- )) |
