Search › Model › ACV36

ACV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,178 parts · 195 categories

4,178 items

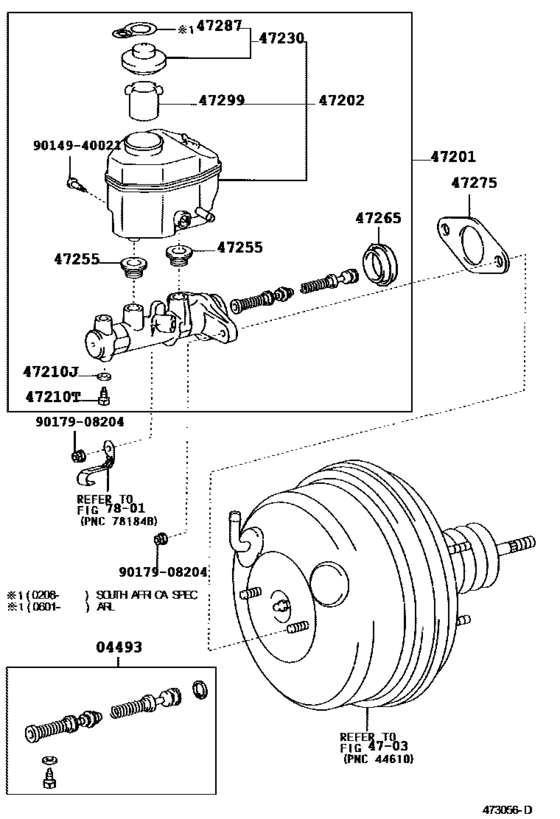

Brake Master Cylinder ([08.2002 - ] (0208- )) 23

#	OEM	Part name
4493	04493-06090	Cylinder Kit, Brake Master
4493	04493-06100	Cylinder Kit, Brake Master
4493	04493-33150	Cylinder Kit, Brake Master
4493	04493-33160	Cylinder Kit, Brake Master
47201	47201-06230	Cylinder Sub-Assy, Brake Master
47201	47201-06240	Cylinder Sub-Assy, Brake Master
47201	47201-06280	Cylinder Sub-Assy, Brake Master
47202	47220-06110	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-06140	Reservoir Sub-Assy, Brake Master Cylinder
47210	90029-43001	Gasket(For Master Cylinder)
47210	90430-06104	Gasket(For Brake Actuator)
47210	90109-06077	Bolt(For Brake Master Cylinder)
47230	47230-04040	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-0D221	Cap Assy, Brake Master Cylinder Reservoir Filler
47230	47230-0K010	Cap Assy, Brake Master Cylinder Reservoir Filler
47255	47255-16010	Grommet, Master Cylinder Reservoir
47265	47265-20050	Boot, Clutch Master Cylinder
47275	47275-12020	Gasket, Brake Master Cylinder
47287	47287-20010	Label, Brake Fluid Information
47299	47299-20060	Strainer, Brake Master Cylinder Reservoir
9014940021	90149-40021	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER

OEM	Part name	Category
04493-06090	Cylinder Kit, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
04493-06100	Cylinder Kit, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
04493-33150	Cylinder Kit, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
04493-33160	Cylinder Kit, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
47201-06230	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
47201-06240	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
47201-06280	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.2002 - ] (0208- ))
47220-06110	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([08.2002 - ] (0208- ))
47220-06140	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([08.2002 - ] (0208- ))
47230-04040	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([08.2002 - ] (0208- ))
47230-0D221	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([08.2002 - ] (0208- ))
47230-0K010	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([08.2002 - ] (0208- ))
47255-16010	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([08.2002 - ] (0208- ))
47265-20050	Boot, Clutch Master Cylinder	Brake Master Cylinder ([08.2002 - ] (0208- ))
47275-12020	Gasket, Brake Master Cylinder	Brake Master Cylinder ([08.2002 - ] (0208- ))
47287-20010	Label, Brake Fluid Information	Brake Master Cylinder ([08.2002 - ] (0208- ))
47299-20060	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([08.2002 - ] (0208- ))
90029-43001	Gasket(For Master Cylinder)	Brake Master Cylinder ([08.2002 - ] (0208- ))
90080-18070	NUT, WWASHER	Brake Master Cylinder ([08.2002 - ] (0208- ))
90109-06077	Bolt(For Brake Master Cylinder)	Brake Master Cylinder ([08.2002 - ] (0208- ))
90149-40021	New Genuine Part	Brake Master Cylinder ([08.2002 - ] (0208- ))
90179-08204	Nut	Brake Master Cylinder ([08.2002 - ] (0208- ))
90430-06104	Gasket(For Brake Actuator)	Brake Master Cylinder ([08.2002 - ] (0208- ))
