Search › Model › ACV36

ACV36

Toyota CAMRY-VISTA-AURION · 2002 · 4,178 parts · 195 categories

4,178 items

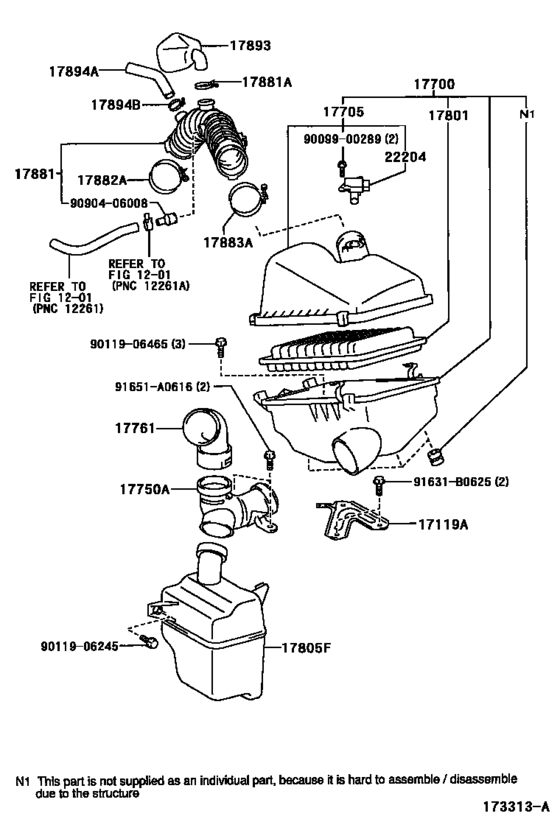

Air Cleaner ([08.2002 - ] (0208- )2AZFE) 24

#	OEM	Part name
17119	17119-0H020	Bracket, Air Cleaner
17700	17700-0H060	Cleaner Assy, Air
17705	17705-0H060	Cap Sub-Assy, Air Cleaner
17750	17750-0H040	Inlet Assy, Air Cleaner
17761	17761-0H010	Cap, Air Cleaner Inlet
17801	17801-0H020	Element Sub-Assy, Air Cleaner Filter
17801	17801-20040	Element Sub-Assy, Air Cleaner Filter
17805	17805-0H030	Resonator Sub-Assy, Intake Air
17881	17881-28160	Hose, Air Cleaner, No.1
17881	17881-28280	Hose, Air Cleaner, No.1
17881	96111-10450	Clamp Or Clip, Hose(For Radiator Inlet)
17882	90466-62002	Clamp(For Air Cleaner Hose, No.1)
17882	96111-10750	Clamp, Hose(For Air Cleaner Duct)
17883	96111-10830	Clamp, Hose(For Air Connector)
17883	96111-10850	Clamp, Hose(For Air Connector)
17893	17893-28010	Resonator, Intake Air
17894	17894-28060	Resonator, Intake Air, No.2
22204	22204-21010	Meter Sub-Assy, Intake Air Flow
91631	91631-B0625	BOLT W-WASHER
91651	91651-A0616	BOLTWWASHER
9009900289	90099-00289	SCREW
9011906245	90119-06245	BOLT
9011906465	90119-06465	BOLT
9090406008	90904-06008	Tube, Union(Fog Air Cleaner Hose)

OEM	Part name	Category
17119-0H020	Bracket, Air Cleaner	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17700-0H060	Cleaner Assy, Air	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17705-0H060	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17750-0H040	Inlet Assy, Air Cleaner	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17761-0H010	Cap, Air Cleaner Inlet	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17801-0H020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17801-20040	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17805-0H030	Resonator Sub-Assy, Intake Air	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17881-28160	Hose, Air Cleaner, No.1	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17881-28280	Hose, Air Cleaner, No.1	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17893-28010	Resonator, Intake Air	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
17894-28060	Resonator, Intake Air, No.2	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
22204-21010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
90099-00289	SCREW	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
90119-06245	BOLT	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
90119-06465	BOLT	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
90466-62002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
90904-06008	Tube, Union(Fog Air Cleaner Hose)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
91631-B0625	BOLT W-WASHER	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
91651-A0616	BOLTWWASHER	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
96111-10450	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
96111-10750	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
96111-10830	Clamp, Hose(For Air Connector)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([08.2002 - ] (0208- )2AZFE)

Source: Public OEM parts-catalog data
