Search › Model › ACV35

ACV35

Toyota CAMRY-VISTA-AURION · 2001 · 4,200 parts · 191 categories

4,200 items

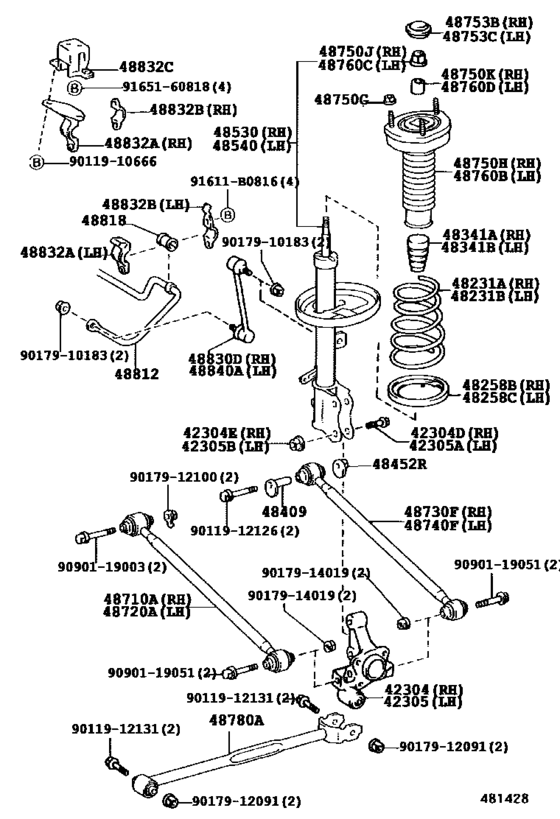

Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35) 53

#	OEM	Part name
42304	42304-33020	Carrier Sub-Assy, Rear Axle, Rh
42304	90901-05001	Bolt (For Rear Axle Carrier Rh)
42304	90178-15001	Nut (For Rear Axle Carrier Rh)
42305	42305-33020	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-33490	Spring, Coil, Rear Rh
48231	48231-33491	Spring, Coil, Rear Rh
48258	48258-32020	Insulator, Rear Coil Spring, Lower Rh
48258	48258-32021	Insulator, Rear Coil Spring, Lower Rh
48258	48258-33010	Insulator, Rear Coil Spring, Lower Lh
48341	48341-32053	Bumper, Rear Spring, No.1 Rh
48341	48341-32054	Bumper, Rear Spring, No.1
48409	48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32030	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-39755	Absorber Assy, Shock, Rear Rh
48530	48530-80113	Absorber Assy, Shock, Rear Rh
48540	48540-39385	Absorber Assy, Shock, Rear Lh
48540	48540-39505	Absorber Assy, Shock, Rear Lh
48710	48710-33090	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-33100	Arm Assy, Rear Suspension, No.2 Rh
48750	90178-08007	Nut(For Rear Suspension Support)
48750	48750-33070	Support Assy, Rear Suspension, Rh
48750	48750-33100	Support Assy, Rear Suspension, Rh
48750	48750-33071	Support Assy, Rear Suspension, Rh
48750	48750-33072	Support Assy, Rear Suspension, Rh
48750	90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-33010	Cover, Rear Suspension Supoport, No.1 Rh
48760	48760-33070	Support Assy Rear Suspension, Lh
48760	48760-33100	Support Assy Rear Suspension, Lh
48760	48760-33071	Support Assy Rear Suspension, Lh
48760	48760-33072	Support Assy Rear Suspension, Lh
48780	48780-33030	Rod Assy, Strut, Rear
48812	48812-33190	Bar, Stabilizer, Rear
48818	48818-48020	Bush, Stabilizer, Rear
48818	48818-48021	Bush, Stabilizer, Rear
48830	48830-21010	Link Assy, Rear Stabilizer, Rh
48832	48832-32050	Bracket, Rear Stabilizer Bar, Lh
48832	48832-32070	Bracket, Rear Stabilizer Bar, No.1
48832	48832-32080	Bracket, Rear Stabilizer Bar, Rh
48832	48832-33030	Bracket, Rear Stabilizer Bar, No.2
48832	48832-32090	Bracket, Rear Stabilizer Bar, No.3
91611	91611-B0816	Bolt
9011910666	90119-10666	New Genuine Part
9011912126	90119-12126	Bolt(For Rear Suspension Arm)
9011912131	90119-12131	Bolt(For Strut Rod)
9011912131	90080-11133	Bolt(For Strut Rod)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017912091	90179-12091	Nut(For Front Suspension Lower Arm)
9017912100	90179-12100	Nut(For Rear Suspension Arm)
9017914019	90179-14019	Nut
9090119003	90901-19003	Bolt(For Rear Suspension Arm)
9090119051	90901-19051	New Genuine Part
9165160818	91651-60818	BOLTWWASHER

OEM	Part name	Category
42304-33020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
42305-33020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48231-33490	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48231-33491	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48258-32020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48258-32021	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48258-33010	Insulator, Rear Coil Spring, Lower Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48341-32053	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48341-32054	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48452-32030	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48530-39755	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48530-80113	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48540-39385	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48540-39505	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48710-33090	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48730-33100	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48750-33070	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48750-33071	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48750-33072	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48750-33100	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48753-33010	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48760-33070	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48760-33071	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48760-33072	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48760-33100	Support Assy Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48780-33030	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48812-33190	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48818-48020	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48818-48021	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48830-21010	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48832-32050	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48832-32070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48832-32080	Bracket, Rear Stabilizer Bar, Rh	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48832-32090	Bracket, Rear Stabilizer Bar, No.3	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
48832-33030	Bracket, Rear Stabilizer Bar, No.2	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90119-10666	New Genuine Part	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90119-12126	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90178-08007	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90178-15001	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90179-12100	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90179-14019	Nut	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90901-05001	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90901-19003	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
90901-19051	New Genuine Part	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
91651-60818	BOLTWWASHER	Rear Spring & Shock Absorber ([09.2001 - ] (0109- )ACV35)
